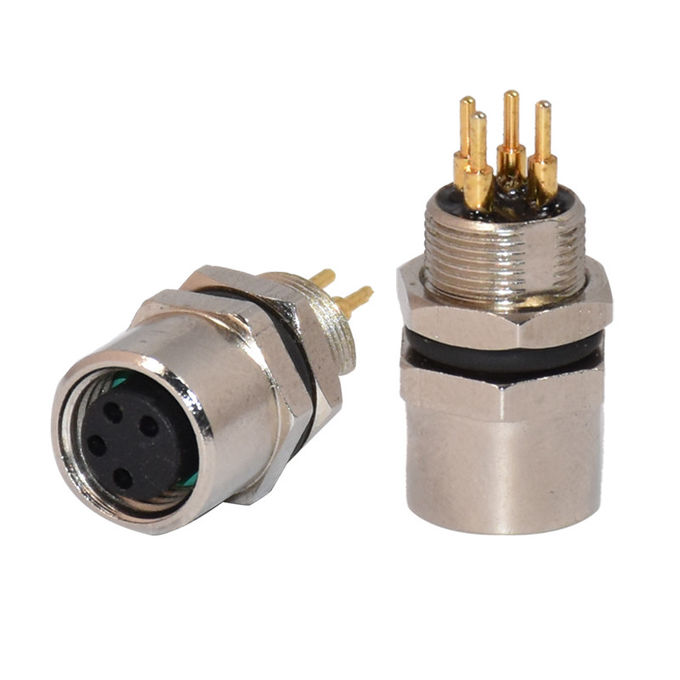

M8 Waterproof Connector 4pins Panel Mount PCB Connector For Sensor
Automation
Product description
Our automation interconnect range includes field-attachable
circular connectors with industry standard M5, M8, M12, M16 & M23
threads in addition to panel mount receptacles, overmolded cable
variants and power/signal distribution units.
Regarding m8 field installable cable connector, the cable outlet
has two types of 4-6 and 6-10 optional.
As panel mount connectors, they may be classified as front
mounting, rear / back mounting type by rear fastening thread and
front fastening thread.
Their pins have wire solder cup pin and PCB DIP solder pin.
Quick details
1. M8 panel mount connector female 4pins PCB connector
2. Connector locking system is bolted
3. Termination is solder
4. Wire gauge(mm) is 0.25mm²
5. Wire gage(AWG) 24
6. Cable outlet can be 3,5 - 5,0 mm
7. Temperature will from -40° to +85°
8. Contacts 3.4.5.6.8pins avaliable
| Material Data |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| Contact body material | PA |
| Housing material | PA |
Electrical values
Rated current (40 °C) :4 A
Rated voltage :60 V
Rated impulse voltage :1500 V
Pollution degree :3
Overvoltage category :III
Insulating material group :III
Volume resistivity :≤ 3 mΩ
EMC compliance :not shielded
Degree of protection :IP67
Mechanical operation :> 100 Mating cycles
| Number of Contacts | 3 | 4 | 5 | 6 | 8 |
| Rated voltage | 30V | 60V |
| Contact resistance | <5mΩ |
| Insulation resistance | <100mΩ |
| Pollution degree | 3 |
| Temperature range | 25 °C to 85° C |
| Degree of protection | IP 67 when mated |
| Mating times | 100 cycles |
| Wire gauge | 24AWG | 26AWG |
| Cable jacket | PVC or PUR |
| Material of housing | Brass Nickel Plated |
| Material of insert | PA+GF UL9V-0 |
| Material of contact | Brass phosohor bronze gold plated |
Product photos
Packsging & Shipping
1.Our general packing: PE bag and PE bag contons. General Carton
size:40*30*30cm
2.Customized according to customer's request
M8 connector can be used a wide fields like LED, Automation,
Sensor, mechanise equipment etc.
• LED lighting , white light , color light etc
• Low current equipement
• Connector be used in narrow environment
• Communication equipement
• Lighting harness
