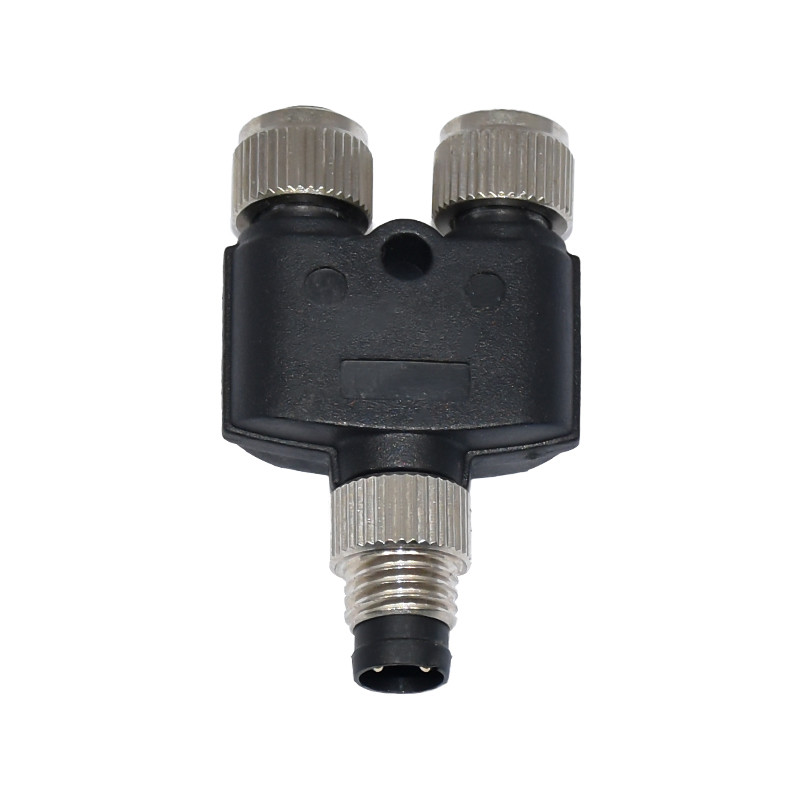

M8 Waterproof Connector Y Type Circular 3pins male Adapter Y - Type
Splitter Connector
Connector description
1. M8 Male Waterproof Connector special locking system.
2. IP68 waterproof connectors to cable assemblies.
3. Anti-oxidization and anti-UV and Compliant with the RoHS
Directive.
4. Similar to this specification, we are able to do customization for
our customers if any special requirements shall be applied on the
products.
5. The M8 connector system provides a solution that safely and
reliably ensures the communication in industrial environments.
6. These receptacles can be used to connect cables in sensor,
actuator or any other application
Product Details
1. M8 IP68 Waterproof Thread Male Y Type Splitter Adapter Power
Circular Connector
2. Field Wireable Plug & Molding Cable
3. High degree of protection IP67, safe to use on site
4. Supply T Type & Y Type Adapter for mating Panel Mount Recetacle
5. Anti-vibration locking screw design 4. Support samples, retail
and bulk orders
Electrical data
Gender: male
Type: Y adapter connector
Rated voltage: 30 V AC
Body shell:PA + GF Housing / Metal shell
Terminal: Screw joint
Material: Brass
Insulation resistance: ≥ 10 GΩ
Connector:DC Power Jack Plug Connector
Mechanical operation :> 100 Mating cycles
Rated voltage :60 V
Rated impulse voltage :1500 V
Material
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: TPU GF
Sealing material: NBR
Material, knurls: Zinc die-cast, nickel-plated
Material of grip body: TPU, hardly inflammable, self-extinguishing
| Serie | M8 Adapter |
| Connection Type | Y Type Adapter |
| Number of Contacts | 3 pins |
| Gender | male |
| Orientation | Straight |
| Rated Current | 4A |
| Operating Voltage | 250V |
| Temperature Range | -25~ + 80C |
| IP Rating | IP67 |
