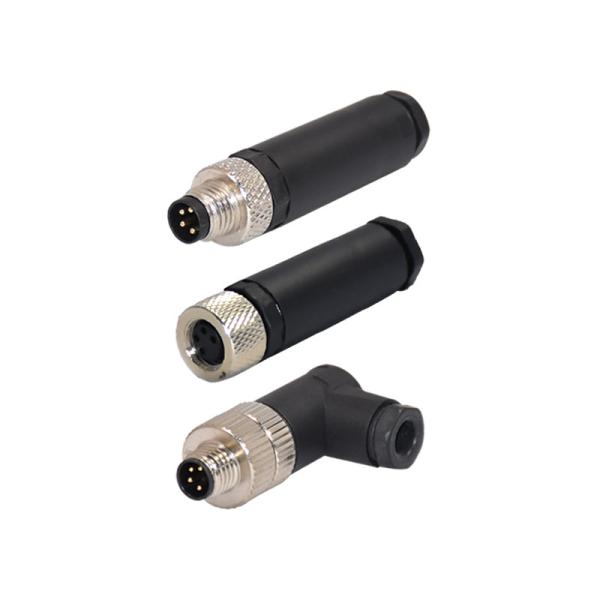

M8 Waterproof Connector 4pins Assembly Right Angle Or Straight Female Male Connector

Quick details
1. M8 assembly connector 4pins female gender
2. Connector locking system is bolted
3. Termination is solder
4. Wire gauge(mm) is 0.25mm²
5. Wire gage(AWG) 24
6. Cable outlet can be 3,5 - 5,0 mm
7. Temperature will from -40° to +85°
8. Contacts 3.4.5.6.8pins avaliable

Electrical values
Rated current (40 °C) :4 A
Rated voltage : 60 V
Rated impulse voltage :1500 V
Pollution degree :3
Overvoltage category :III
Insulating material group :III
Volume resistivity :≤ 3 mΩ
EMC compliance :not shielded
Degree of protection :IP67
Mechanical operation :> 100 Mating cycles

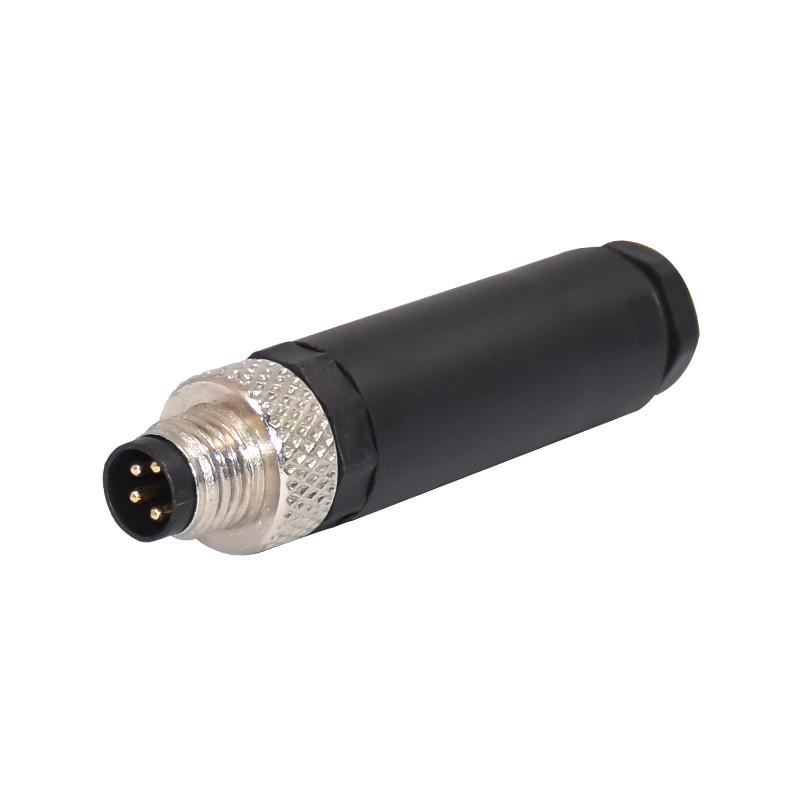

Product photos






Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request


M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

• LED lighting , white light , color light etc

• Low current equipement

• Connector be used in narrow environment

• Communication equipement

• Lighting harness
