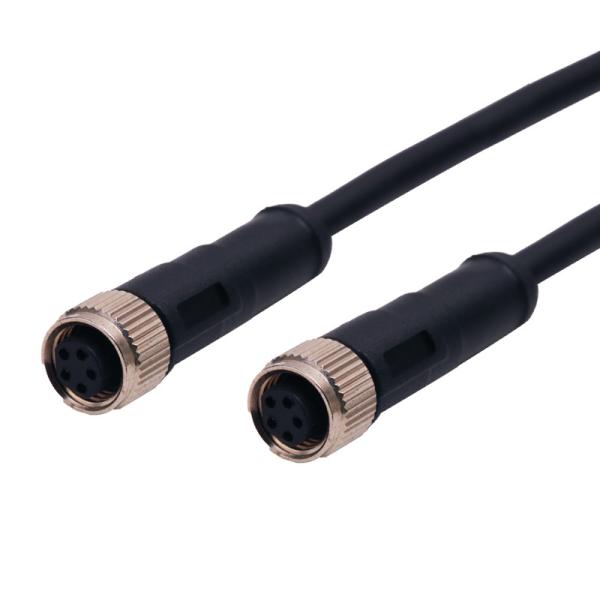

M8 Waterproof Connector Female Molded Cable Circular 3 4 5 6 8 12 Poles Sensor Connector

Product description

M8 Male Waterproof Connector special locking system.

IP68 waterproof connectors to cable assemblies.

We provide wide range of M8 connector specification.

All of our waterproof connectors can reach IP68. Besides 3,4,6,8 pins option, we could also provide our customers with A code and B code specification.

The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged.

Quick Details
Type:M8
Application:Automotive, Sensor or Automation
Gender:male/female
Product name:M8 A coding R/A female to female waterproof cable
Rated current:4A
Contacts:3,4,5,6 8pins are available
Coupling:Threaded coupling
Shielding:un-alaibable
IP degree:IP67/IP68

Description
Anti-vibration locking screw design
RoHS & REACH Compliance

There is PG7 and PG9 for choose,PG7 subitable OD4-6mm cable,PG9 suitabble OD6-8mm cable

Electrical Data
Rated voltage:60V
Insulation resistance:100MΩ
Contact resistance:≤5mΩ
Ambient temperature:-20°C~+80°C

Standard:IEC61076-2-101

Material
Overmold:Transparent TPU
Insert:TPU+GF

Material of Housing: Brass Nickel Plated

Cable Jacket: PVC or PUR

Wire Gauge: 24AWG or 26AWG

Material of Insert: PA+GF, UL9V_0

Material of Contacts: Male brass, female phosphor Bronze, Gold Plated

Product photos

Packaging & Shipping

Usually standard size 38*32*32cm/CTN,1000pcs/CTN

approval customized based on customers' requirements

MOQ: 100pcs each item

Delivery time: 5-7days after the payment received

Shipment: by Express,by Air, by Sea

Payment terms: 100% TT in Advance

Payment method: T/T, Western Union, Paypal

Company Information

Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficient manufacturer. We specialized in producing waterproof cables & waterproof connectors such as M8, M12, M16, M23, D-SUB. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on ,they are equivalent to Phoenix, Binder, Lumberg and Molex etc.

Our philosophy and purpose is: Customer Foremost, Service First,Quality first.Our products mainly exported to all over the world.And get a high degree approval and recognition from our customers.

Sincerely to work with you together in the near future.

Company Profile：

Factory profile：

Shenzhen Rigoal Connnector Co.,Ltd. was established in 2013 years and is located in Shenzhen, China,enjoying convenient transportation and beautiful environment. Our company covers an area of 3500 square meters and has 160 employees at present. Company has obtained ISO9001 2015 certification.

We are specialized in waterproof connector and cable.Rigoal company focus on ODM and OEM connector and cable. Our company has rich experience in the senor , power and Ethernet industry. Our main products include M5 M8 M9 M10 M12 M16 M18 M20 M23 M40 RD24 RD30 mini7/8 etc circular waterproof connector and cable. push-pull connectors ,Solenoid value connector, RJ45 USB D-SUB waterproof connector and LED area power waterproof connector and cable .Plastic T or Y type connector and cables .Most of our products have got UL CE Rohs IP68 etc certificates.Besides, we are making great efforts to develop new products to meet different requirements. Welcome your custom-made.

Our products mainly clients in Europe ,USA, Australian,Korea etc. We also welcome all over the world orders.Our company has 30 equipment to strictly control the product quality.Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success.
