M8 Waterproof Connector IP68 Female Right Angle Molding Connector
Sensor Cable
Product description
The M8 connector is used specifically with industrial sensors and
features a waterproof screw.
M8 Connector, Standard Circular Connectors, Wire-to-Wire, 4
Position, Sealable, Wire & Cable, 3A Contact Current Rating (Max),
Signal, Brass M8 Connector TE Internal
Our automation interconnect range includes field-attachable
circular connectors with industry standard M5, M8, M12, M16 & M23
threads in addition to panel mount receptacles, overmolded cable
variants and power/signal distribution units
Quick Details
Type: M8
Application: Automotive, Sensor or Automation
Gender: male/female
Product name:M8 A coding R/A female to female waterproof cable
Rated current: 4A
Contacts: 3,4,5,6 8 12pins are available
Coupling: Threaded coupling
Shielding: un-alaibable
IP degree: IP68
Description
Anti-vibration locking screw design
RoHS & REACH Compliance
There is PG7 and PG9 for choose,PG7 subitable OD4-6mm cable,PG9
suitabble OD6-8mm cable
Electrical Data
Rated voltage:60V
Insulation resistance:100MΩ
Contact resistance:≤5mΩ
Ambient temperature:-20°C~+80°C
Standard:IEC61076-2-101
Material
Overmold:Transparent TPU
Insert:TPU+GF
Material of Housing: Brass Nickel Plated
Cable Jacket: PVC or PUR
Wire Gauge: 24AWG or 26AWG
Material of Insert: PA+GF, UL9V_0
Material of Contacts: Male brass, female phosphor Bronze, Gold
Plated

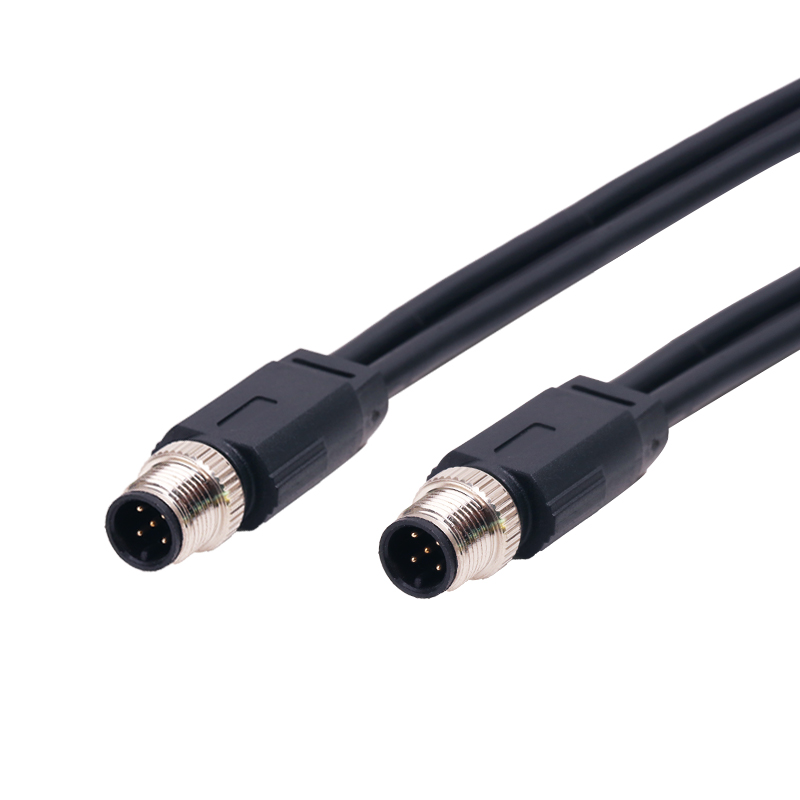

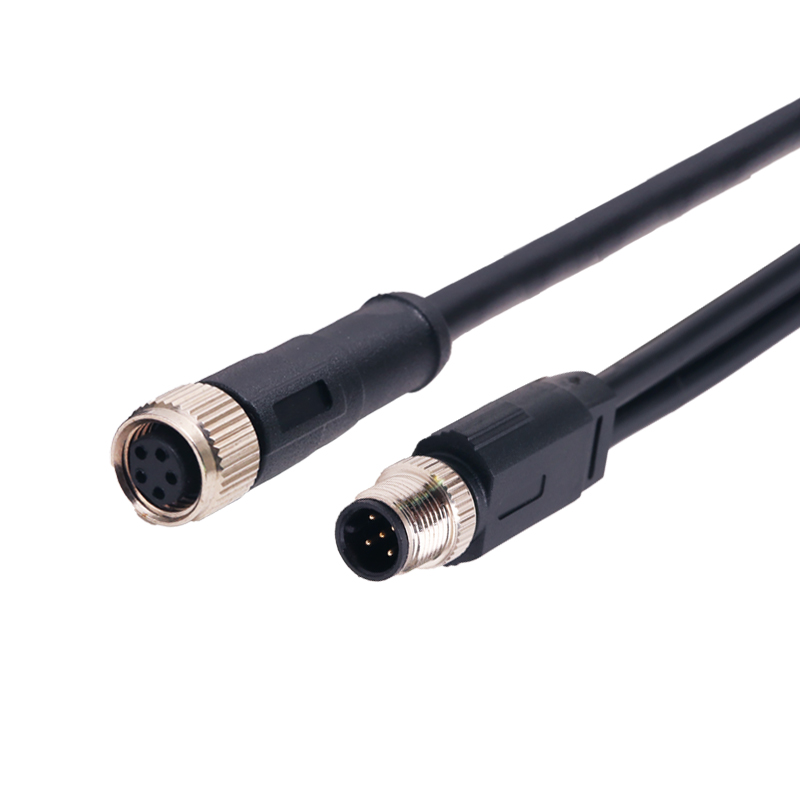

Product Photos
Packaging & Shipping
Usually standard size 38*32*32cm/CTN,1000pcs/CTN
approval customized based on customers' requirements
MOQ: 100pcs each item
Delivery time: 5-7days after the payment received
Shipment: by Express,by Air, by Sea
Payment terms: 100% TT in Advance
Payment method: T/T, Western Union, Paypal
FAQ
1. Q: What type waterproof connector do you have?
We have a lot of types connector,most of our connector is
customized.We foucs on LED Waterproof connector, Assembly
waterproof connector,Over-mold waterproof connector,Sensor
connector etc, also customized according to your requirements.
2. Q: How to buy your products?
* Confirm the type of connector
* Confirm the Number of Connector
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way
3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than
10 years,So we can catch your problem,and solve it in a short time.
Rigoal-----Your Best Connection!
