    M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering

    Ask Lasest Price
    Brand Name : Rigoal
    Model Number : M8 panel mount connector
    Certification : CE , Rohs
    Price : negotiable
    Supply Ability : 10000 per week
    Delivery Time : 7-10days
    • Product Details
    • Company Profile

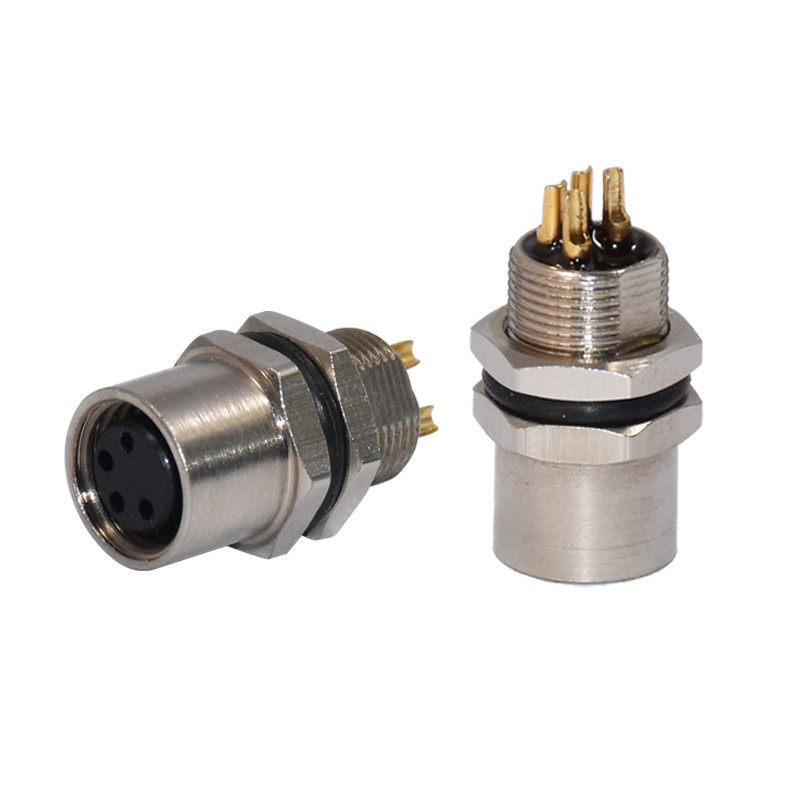

    M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering

    M8 Waterproof Connector Female 5pins Panel Mount Rear Panel Connector With Soldering


    Product description

    ♦ M8 Series Front Panel Mount Connectors; Water and dustproof to IP67 when mated with compatible connector; Pin or Socket; 3, 4, 5 Pole (3, 4 Pole are A Code, 5 Pole are B Code) Flying Lead Termination with choice of lead lengths, depending on part code

    ♦ we provide customized service, best lead time and the competitive price as well.

    ♦ RIGOAL is a professional manufacturer of M8 Waterproof Connectors.


    Quick details

    1. M8 panel mount connector

    2. Connector locking system is bolted

    3. Termination is solder

    4. Wire gauge(mm) is 0.25mm²

    5. Wire gage(AWG) 24

    6. Cable outlet can be 3,5 - 5,0 mm

    7. Temperature will from -40° to +85°

    8. Contacts 3.4.5.6.8pins avaliable


    Material Data
    Contact materialCuZn (brass)
    Contact platingAu (gold)
    Contact body materialPA
    Housing materialPA

    Electrical values

    Rated current (40 °C) :1.5A/4 A

    Rated voltage :30V/60 V

    Rated impulse voltage :1500 V

    Pollution degree :3

    Overvoltage category :III

    Insulating material group :III

    Volume resistivity :≤ 3 mΩ

    EMC compliance :not shielded

    Degree of protection :IP67

    Mechanical operation :> 100 Mating cycles


    Number of Contacts34568
    Rated voltage30V60V
    Contact resistance<5
    Insulation resistance<100mΩ
    Pollution degree3
    Temperature range25 °C to 85° C
    Degree of protectionIP 67 when mated
    Mating times100 cycles
    Wire gauge24AWG26AWG
    Cable jacketPVC or PUR
    Material of housingBrass Nickel Plated
    Material of insertPA+GF UL9V-0
    Material of contactBrass phosohor bronze gold plated

    Product photos

    M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering

    M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering

    M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering

    M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering

    M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering


    M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering

    Packsging & Shipping

    1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

    2.Customized according to customer's request


    M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

    • LED lighting , white light , color light etc

    • Low current equipement

    • Connector be used in narrow environment

    • Communication equipement

    • Lighting harness


    Company Information

    Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficient manufacturer. We specialized in producing waterproof cables & waterproof connectors such as M5, M8,M9 M12, M16, M23, D-SUB. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on ,they are equivalent to Phoenix, Binder, Lumberg and Molex etc.

    Our philosophy and purpose is: Customer Foremost, Service First,Quality first.Our products are exported to all over the world. Meanwhile, we have agents and customers in different countries and won speaking highly of them due to our high quality products and good after-sales service.

    Warmly welcome you join in us, your support will be always our motivation.

    Let's go forward hand in hand to create a brilliant future.


    Rigoal-----Your Best Connection!
