M16 Circular Connector assembly Connector female Waterproof 8pins
waterproof connector
Product details
♦ With excellent EMI shielding and an environmental protection
rating of IP67 when mated, this robust M16 Screw locking compliant
with DIN EN 61076-2-106 connector range is an ideal solution for
ensuring that power and signal connections are not compromised in
harsh environments and industrial applications.
♦ Panel mount, assembly connector are avaliable, also can customized
based on customer's requirements.
♦ M16 Front Screw Back Panel Mount Socket Connector, waterproof is
IP67
♦ Special feature and service can be provided upon requirement.
♦ it is usually widely used on all kinds of outdoor applications,
specially for the signal transmission, Medical Equipment,Audio /
Video, Test and ♦ Measurement, Communications product line.
♦ We guaranteed that 100% in good quality, the price will be
reasonal
Material details
Gender: female
Type: Assembly m16 connector
Wire gauge(mm): max. 0,75 mm2(max. AWG 20)
Material ot contact: CuZn
Contact plating: Au (Gold/gold)
Material of contact body: PBT (UL 94 V-0)
Material of housing: CuZn (brass, nickel plated)
Pollution degree: 1(2)²
Overvoltage categorie: l(II)²
Material group: lll
Upper temperature: + 85 °C
Lower temperature: – 40 °C
| Gender | female |
| Connector type | m16 assembly connector |
| Contacts of number | 8 pins |
| Rated voltage | 60 V (32 V) |
| Rated impulse voltage | 500 V |
| Rated current | 5A |
| Contact resistance | ≤ 5 ohm / ≤ 3 ohm |
| Contact plating | Ag Au (Gold/gold) |

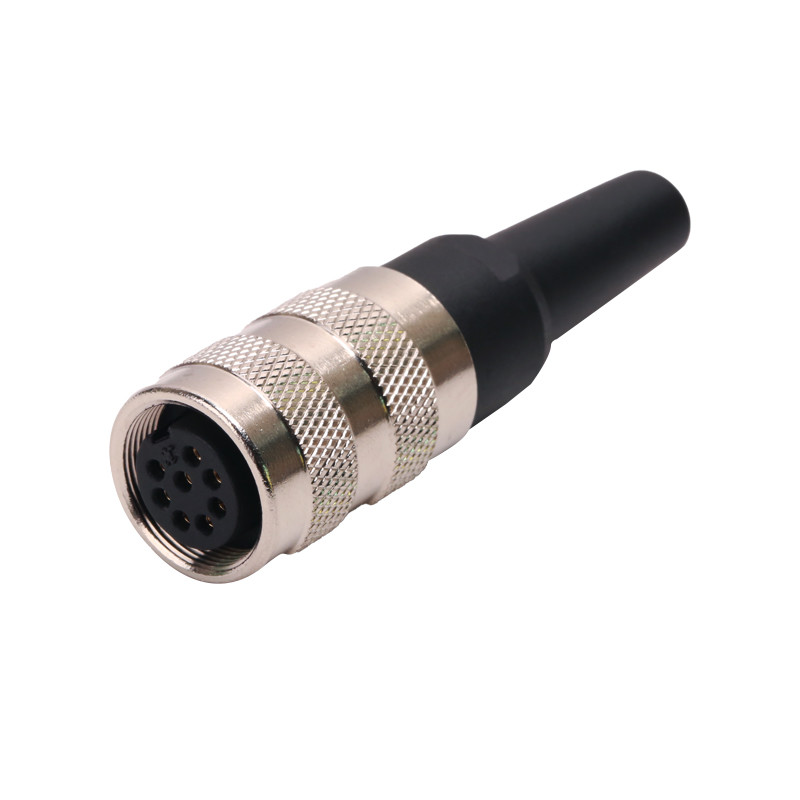

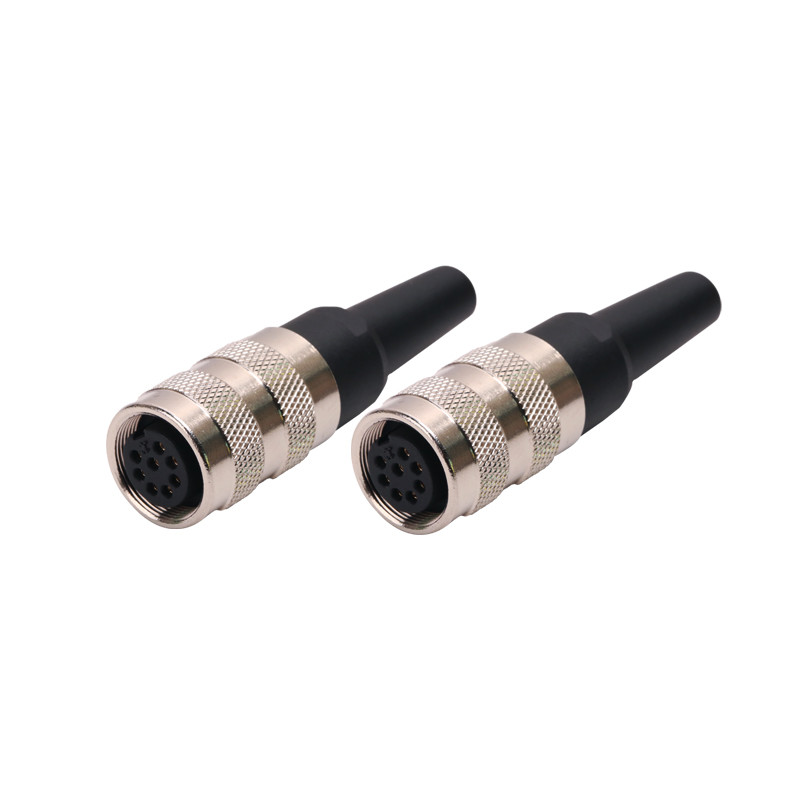

Product Photos
FAQ
Q1: Why choose us?
A: 100% homemade, competitive price and fast delivery
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q3: How long is your delivery time?
A: Sample is around 5 working days; Mass is 5-15 work days.
Q4. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu
connector, solenoid valve connector etc, also can customized based
on buyer's requirements as long as tell us your details
Q5: What’s the connector made of?
Material ot contact: CuZn
Contact plating: Au (Gold/gold)
Material of contact body: PBT (UL 94 V-0)
Material of housing: CuZn (brass, nickel plated)
Q6: What are the payment methods?
A: T/T, PayPal, Western Union, Ali trade assurance.
Q7: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q8: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
