M16 Circular Connector Shielded Female Straight 8pins Connector
Industrial IP67 Plug
Product details
2 3 4 5 6 7 8 12 14 19 24Pins are avaliable
M16 connectors were originally designed to meet the requirements of
Deutsches Institut für Normung (German Institute for
Standardisation) that defined the standard for circular connectors
for analog audio signals
it is usually widely used on all kinds of outdoor applications like
as signal transmission, Medical Equipment,Audio / Video, Test and
Measurement, Communications product line.
We guaranteed that 100% in good quality, the price will be reasonal
| General Characteristics |
| Locking system | screw M16*0.75 |
| Termination | solder, moulded on cable |
| Wire guage in mm² | max 0.25 |
| Wire guage in AWG | max 24 |
| Shell protection | IP67/IP68 |
| Mechanical operation | >500 mating cycles |
Material details
Gender: female
Type: m16 shielded assembly connector
Wire gauge(mm): max. 0,75 mm2(max. AWG 20)
Material ot contact: CuZn
Contact plating: Au (Gold/gold)
Overvoltage categorie: l(II)²
Material group: lll
Upper temperature: + 85 °C
Lower temperature: – 40 °C
Pollution degree: 1(2)²
Material of contact body: PBT (UL 94 V-0)
Material of housing: CuZn (brass, nickel plated)
| Gender | female |
| Connector type | m16 shielded connector |
| Contacts of number | 8 pins |
| Rated voltage | 60 V(32V) |
| Rated impulse voltage | 500 V |
| Rated current | 5A |
| Contact resistance | ≤ 5 ohm/≤ 3 ohm |
| Contact plating | Ag Au (Gold/gold) |

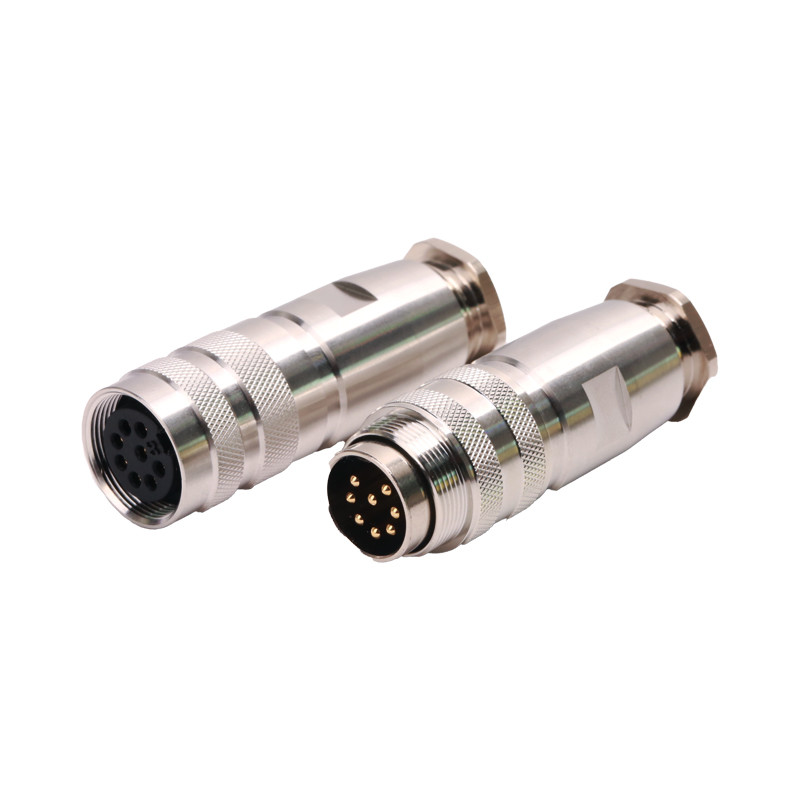

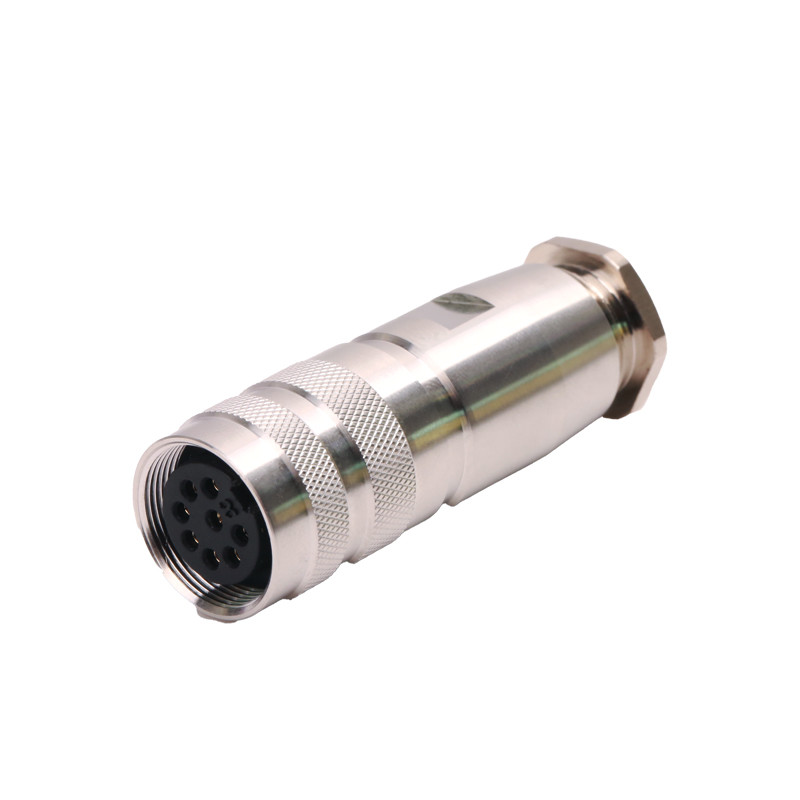

Product Photos
Application
FAQ
Q1: Why choose us?
A: 100% homemade, competitive price and fast delivery
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q3: How long is your delivery time?
A: Sample is around 5 working days; Mass is 5-15 work days.
Q4. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu
connector, solenoid valve connector etc, also can customized based
on buyer's requirements as long as tell us your details
Q5: What are the payment methods?
A: T/T, PayPal, Western Union, Ali trade assurance.
Q6: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
