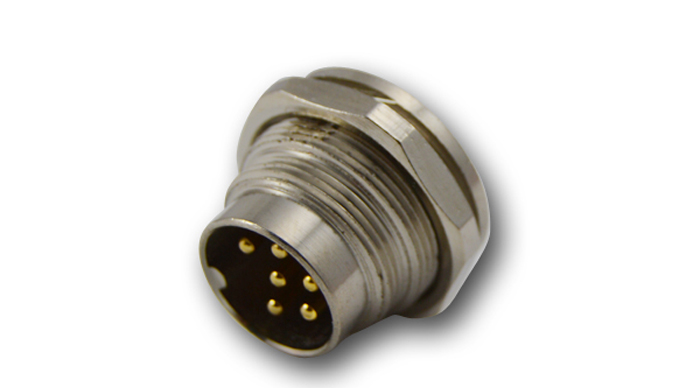

M16 Circular Waterproof 4 5pins M16 Male Panel Mount Front Rear
Socket Connector
Product description
M16 Circular DIN Connectors are an ideal solution for ensuring that
power and signal connections are not compromised in harsh
environments and industrial applications.
Water and dustproof to IP67 when mated with compatible connector
- Screw locking compliant with DIN EN 61076-2-106
- IP67 degree of protection
- Robust metal connector
- Excellent EMI shielding
- Pole variants from 3 to 12
- Harsh Environments
- Industrial
Quick Details
Contacts: 2.3.4.5.6.7.8.12.14.16.19.24pins
Coupling: Threaded coupling
Termination: Solder
Mating cycle:500times
Cable temperature: -25℃~+85℃
Cable diameter:≤Φ6mm~≤Φ8.5mm
Rated current:5A~7A
Rated voltage:60V~200V
Solder inter diameter:0.5mm~1.5mm
Insulation resistance(mΩ) at DC500V: 1000~1500
Contact resistance(mΩ) at DC1A: 7A~12A
Solder up mouth aperture(mm):0.6mm~1mm
Withstanding voltage:500V~1500V
Material
Shell material:Zinc alloys with nikelplate, PAA+GF20%
Insert material:PA66+GF20%
Contact material: Copper(silver/gold plated)
| Model Number | M16 |
| Item | circular outdoor connectors |
| Life cycles | 5000 mating |
| Contacts | 2/3/4/5/6/8pin |
| Contact resistance | ≤5mΩ or ≤3mΩ |
| Insulation resistance | ≥10³MΩ |
| Upper temperature | PA66(UL 94V-0) |
Number of contacts
Product Photos
Packaging & Shipping
Usually PE bags and cartons
approval customized based on customers' requirements
MOQ: 100pcs each item
Delivery time: 5-7days after the payment received
Shipment: by Express,by Air, by Sea
Payment terms: 100% TT in Advance
Payment method: T/T, Western Union, Paypal
