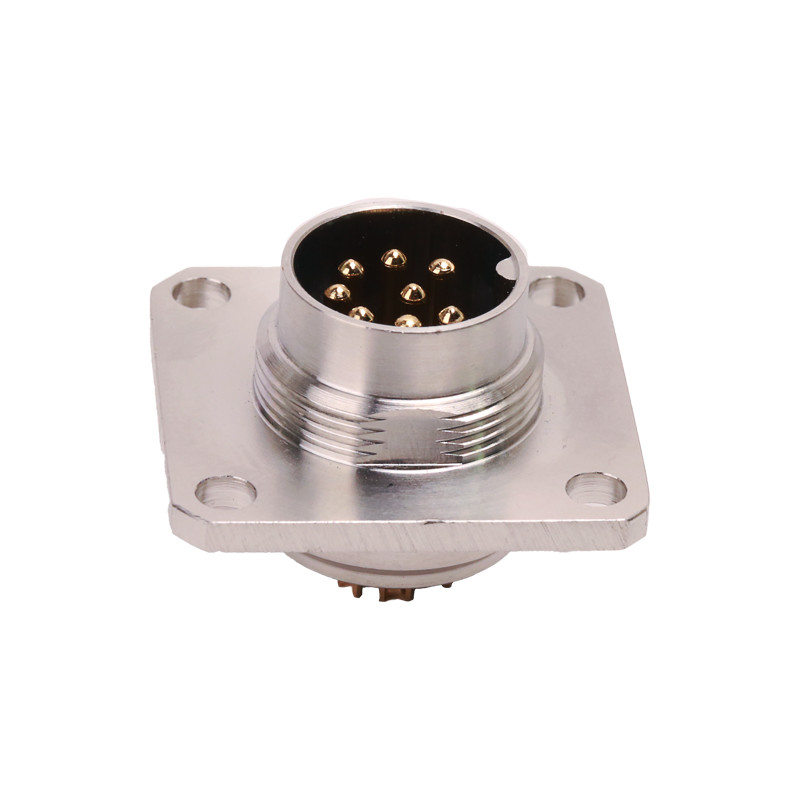

M16 Square Panel Mount 8pins Male Connector Waterproof IP67 Socket
For Sensor Connector
Product details
* M16 connectors were originally designed to meet the requirements
of Deutsches Institut für Normung (German Institute for
Standardisation) that defined the standard for circular connectors
for analog audio signals
* M16 Circular Metric Connectors are available at Mouser
Electronics.
* These were used widely for many years and commonly known
throughout the audio industry and to the consumer as DIN
connectors.
| General Characteristics |
| Locking system | screw M16*0.75 |
| Termination | solder, moulded on cable |
| Wire guage in mm² | max 0.75 |
| Wire guage in AWG | max 20 |
| Shell protection | IP67/IP68 |
| Mechanical operation | >500 mating cycles |
| Upper temperature | +85℃ |
| Lower temperature | -25℃ |
| Rated voltage | 60V,125V,250V |
| Test voltage | 550V, 910V,1750V |
| Rated current(40℃) | 1 3 5 6 7A |
| Pollution degree | III |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥10³MΩ / ≤3mΩ |
Material details
Gender: male
Wire gauge: max. 0,75 mm2
Material ot contact: CuZn
Contact plating: Au (Gold/gold)
Material of contact body: PBT (UL 94 V-0)
Rated impulse voltage: 500 V
Pollution degree: 1(2)²
Overvoltage categorie: l(II)²
Material group: lll
Upper temperature: + 85 °C
Lower temperature: – 40 °C
| Gender | male |
| Cable outlet | 4–6 mm (PG 7)/6–8 mm (PG 9) |
| Contacts of number | 8 pins |
| Rated voltage | 60 V |
| Material of housing | CuZn (brass, nickel plated) |
| Rated current (40ºC) | 5A |
| Contact resistance | ≤ 5 ohm/≤ 3 ohm |
| Contact plating | Ag Au (Gold/gold) |
