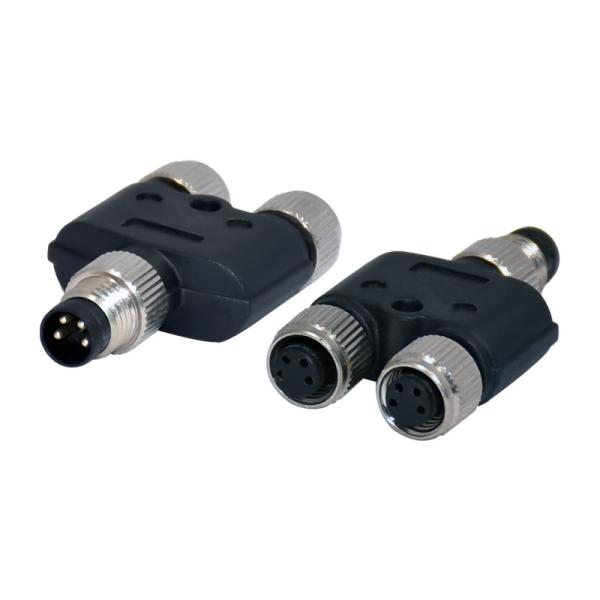

M8 Waterproof Connector Circular 3pins 4pins Female To Male Y Type
IP67 Straight Socket
Product description
The M8 connector system provides a solution that safely and
reliably ensures the communication in industrial environments.
Designed to IEC-61076-2-101, this connector system also finds
applications outside of its traditional industries where a compact,
reliable connection system with environmental protection is
required.
It features in contact configurations of 3 to 8 poles, male and
female variants and two orientations straight and right angled.
we provide customized service, best lead time and the competitive
price as well.
Product Details
1. M8 IP68 Waterproof Thread straight Male to female Y Type
Splitter Adapter Power Circular Connector
2. Field Wireable Plug & Molding Cable
3. High degree of protection IP67, safe to use on site
4. High quality gold-plated solid phosphor bronze contacts , ≥ 600
times mating life
5. Anti-vibration locking screw design 4. Support samples, retail
and bulk orders
Electrical data
Gender: male and female
Type: Y adapter
Rated voltage: 30 V AC
Terminal: Threaded joint
Material: Brass
Insulation resistance: ≥ 10 GΩ
Connector:DC Power Jack Plug Connector
Mechanical operation :> 100 Mating cycles
Rated impulse voltage :1500 V
Material
Flammability rating according to UL 94: HB
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: TPU GF
Material of grip body: TPU, hardly inflammable, self-extinguishing
Material, knurls: Zinc die-cast, nickel-plated
Sealing material: NBR
| Serie | M12 Adapter |
| Connection Type | Y Type Adapter |
| Number of Contacts | 3pins and 4 pins |
| Gender | female and male |
| Orientation | Straight |
| Rated Current at 40°C | 4A |
Rated voltage | 30 V DC |
| Temperature Range | -25~ + 80C |
| IP Rating | IP67 |
Product photos
Application
FAQ
Q1: Why choose us?
A: 100% homemade, competitive price and fast delivery
Q2. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu
connector, solenoid valve connector etc, also can customized based
on buyer's requirements as long as tell us your details
Q3: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q4: How long is your delivery time?
A: Sample is around 5 working days; Mass is 5-15 work days.
Q5: What’s the connector made of?
Material ot contact: CuZn
Contact plating: Au (Gold/gold)
Material of contact body: PBT (UL 94 V-0)
Material of housing: CuZn (brass, nickel plated)
Q6: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q7: What are the payment methods?
A: T/T, PayPal, Western Union, Ali trade assurance.
Q8: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
Q9: How to contact us?
A: contact us with email/whatsapp/wechat
