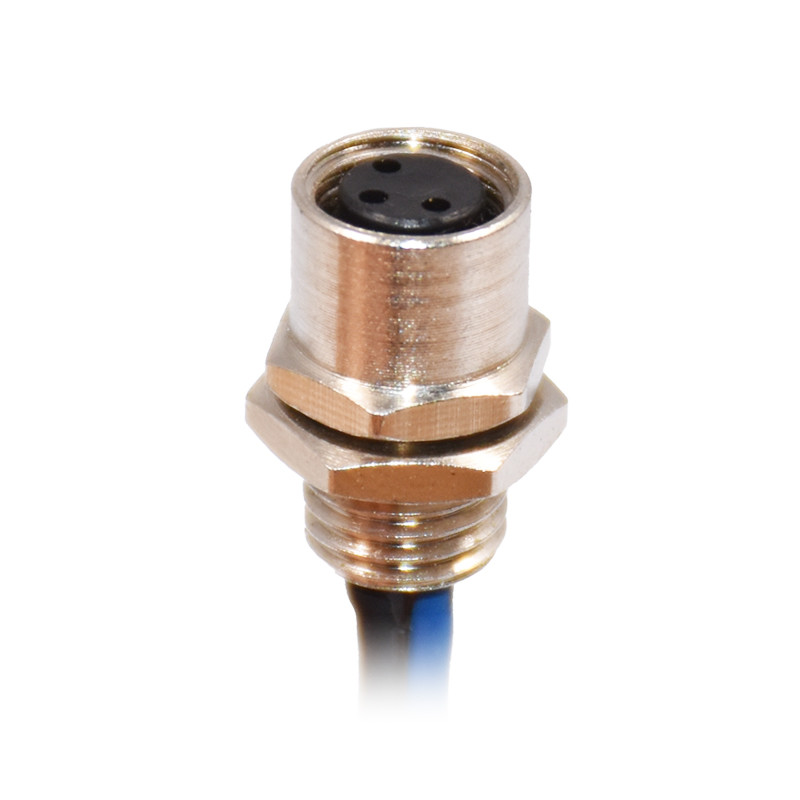

M8 Waterproof Connector 3 Pins Rear Panel Mount Connector With Tail
Sensor Application
Rigoal could supply various m8 male and female panel mount
connectors.
These m8 circular connectors may be classified as straight and 90
degree right angle m8 panel mount connectors, shielded and
unshielded pcb panel mount connectors, front and rear panel mount,
front and rear fasten screw thread, wire solder pin and DIP solder
pin connectors.
The M8 connector system provides a solution that safely and
reliably ensures the communication in industrial environments.
Product description
1. M8 panel mount connector
2. Connector locking system is bolted
3. Termination is solder
4. Housing material is PA
5. Wire gage(AWG) 24
6. Cable outlet can be 3,5 - 5,0 mm
7. Temperature will from -40° to +85°
8. Contacts 3.4.5.6.8pins avaliable
| Product data |
| Gender | female |
| Contacts | 3pins |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| Contact body material | PA |
| Wire gage(AWG) | 0.25mm² |
Electrical values
Rated current (40 °C) : 4 A
Rated voltage :60V
Rated impulse voltage :1500 V
Pollution degree :3
Overvoltage category :III
Insulating material group :III
Volume resistivity :≤ 3 mΩ
EMC compliance :not shielded
Degree of protection :IP67
Mechanical operation :> 100 Mating cycles
Product photos
M8 connector can be used a wide fields like LED, Automation,
Sensor, mechanise equipment etc.
• LED lighting , white light , color light etc
• Low current equipement
• Connector be used in narrow environment
• Communication equipement
• Lighting harness
Our service
1. We are the manufacture, Rigoal is our brand, and has built a
great reputation in China even around the world.
2. We guaranteed that 100% in good quality, the price will be
reasonal.
3. All the inquiry will be response within 24 hours, the
commucation will be effective.
4. Special feature and service can be provided upon requirement.
Rigoal-----Your Best Connection!
