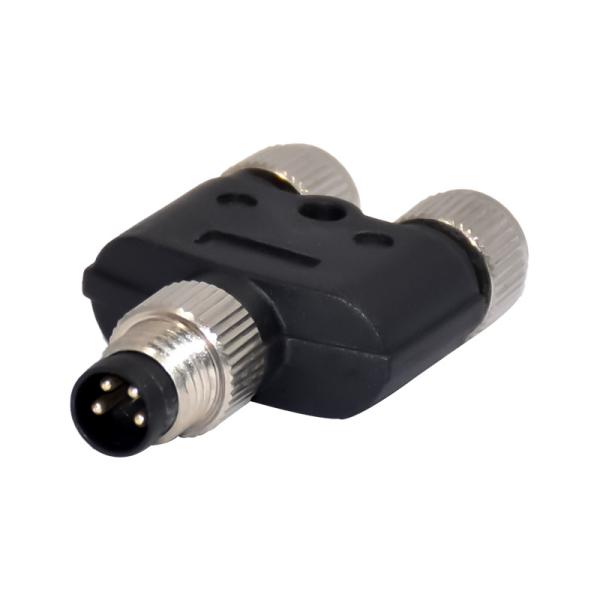

M8 Waterproof Connector Circular 4pins Male Y Type Splitter
Assembly Straight Socket
Product description
RIGOAL is a professional manufacturer of M8 Waterproof Connectors.
We provide wide range of M8 connector specification.
This specification allows our customers to connect the panel side
with cable side correctly and smoothly without damaging the pins.
All of our waterproof connectors can reach IP68. Besides 3,4,6,8
pins option, we could also provide our customers with A code B code
and D code specification.
Product Details
1. M8 IP68 Waterproof Thread straight Male Y Type Splitter Adapter
Power Circular Connector
2. Supply T Type & Y Type Adapter for mating Panel Mount Recetacle
3. Field Wireable Plug & Molding Cable
4. High degree of protection IP67, safe to use on site
5. High quality gold-plated solid phosphor bronze contacts , ≥ 600
times mating life
6. Anti-vibration locking screw design 4. Support samples, retail
and bulk orders
Electrical data
Gender: male
Type: Y adapter
Rated voltage: 30 V AC
Terminal: Screw joint
Material: Brass
Insulation resistance: ≥ 10 GΩ
Connector:DC Power Jack Plug Connector
Mechanical operation :> 100 Mating cycles
Rated impulse voltage :1500 V
Material
Flammability rating according to UL 94: HB
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: TPU GF
Material of grip body: TPU, hardly inflammable, self-extinguishing
Material, knurls: Zinc die-cast, nickel-plated
Sealing material: NBR
| Serie | M12 Adapter |
| Connection Type | Y Type Adapter |
| Number of Contacts | 4 pins |
| Gender | male |
| Orientation | Straight |
| Rated Current at 40°C | 4A |
Rated voltage | 30 V AC |
| Temperature Range | -25~ + 80C |
| IP Rating | IP67 |
Product photos
Application
FAQ
Q1: Why choose us?
A: 100% homemade, competitive price and fast delivery
Q2. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu
connector, solenoid valve connector etc, also can customized based
on buyer's requirements as long as tell us your details
Q3: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q4: How long is your delivery time?
A: Sample is around 5 working days; Mass is 5-15 work days.
Q5: What’s the connector made of?
Material ot contact: CuZn
Contact plating: Au (Gold/gold)
Material of contact body: PBT (UL 94 V-0)
Material of housing: CuZn (brass, nickel plated)
Q6: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q7: What are the payment methods?
A: T/T, PayPal, Western Union, Ali trade assurance.
Q8: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
Q9: How to contact us?
A: contact us with email/whatsapp/wechat
