M8 Waterproof Connector 3/4/5/6/8pins Panel Mount Male And Female
Connector With Solder
Product description
M8 Series Front Panel Mount Connectors; Water and dustproof to IP67
when mated with compatible connector; Pin or Socket; 3, 4, 5 Pole
(3, 4 Pole are A Code, 5 Pole are B Code) Flying Lead Termination
with choice of lead lengths, depending on part code.
We provide wide range of M8 connector specification.
This specification allows our customers to connect the panel side
with cable side correctly and smoothly without damaging the pins.
Quick details
1. M8 panel mount connector
2. Connector locking system is bolted
3. Termination is solder
4. Wire gauge(mm) is 0.25mm²
5. Wire gage(AWG) 24
6. Cable outlet can be 3,5 - 5,0 mm
7. Temperature will from -40° to +85°
8. Contacts 3.4.5.6.8.12pins avaliable
| Material Data |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| Contact body material | PA |
| Housing material | PA |
Electrical values
Rated current (40 °C) :4 A
Rated voltage :60 V
Rated impulse voltage :1500 V
Pollution degree :3
Overvoltage category :III
Insulating material group :III
Volume resistivity :≤ 3 mΩ
EMC compliance :not shielded
Degree of protection :IP67
Mechanical operation :> 100 Mating cycles
| Number of Contacts | 3 | 4 | 5 | 6 | 8 |
| Rated voltage | 30V | 60V |
| Contact resistance | <5mΩ |
| Insulation resistance | <100mΩ |
| Pollution degree | 3 |
| Temperature range | 25 °C to 85° C |
| Degree of protection | IP 67 when mated |
| Mating times | 100 cycles |
| Wire gauge | 24AWG | 26AWG |
| Cable jacket | PVC or PUR |
| Material of housing | Brass Nickel Plated |
| Material of insert | PA+GF UL9V-0 |
| Material of contact | Brass phosohor bronze gold plated |

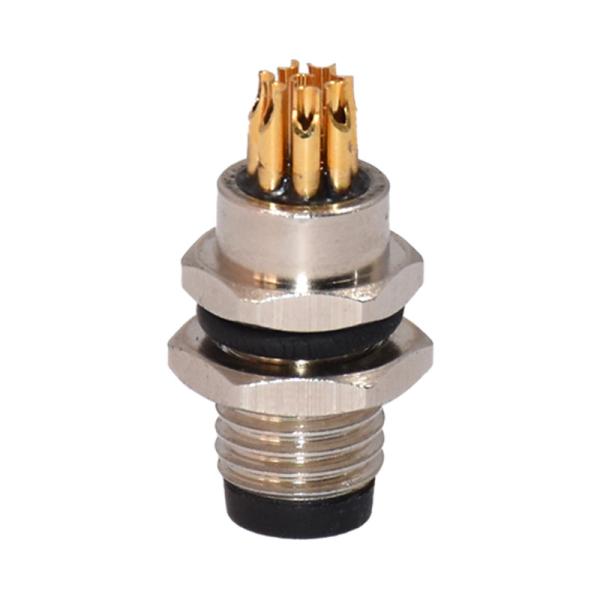

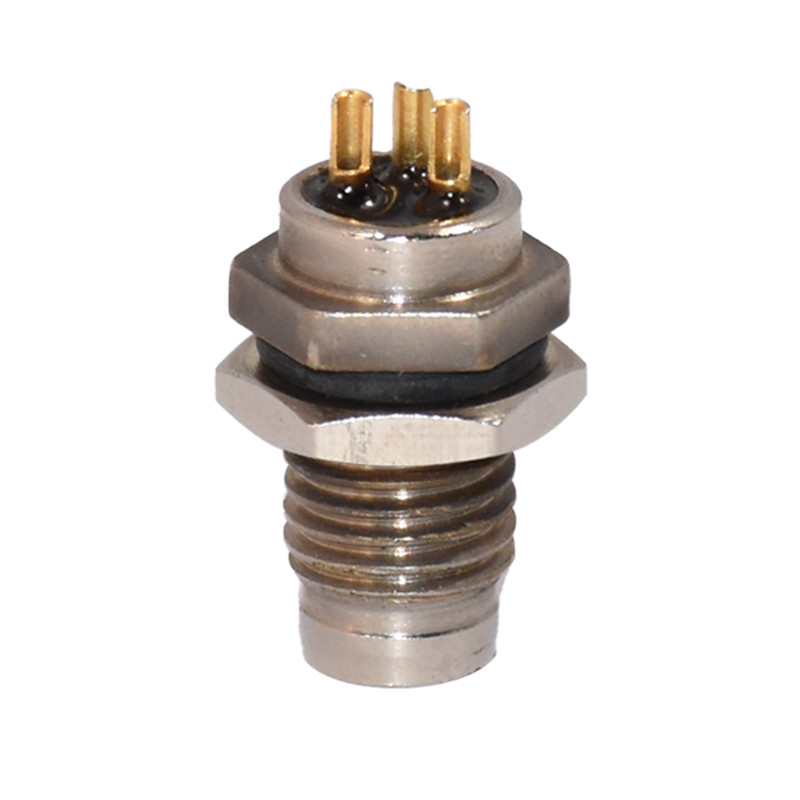

Product photos
Packsging & Shipping
1.Our general packing: PE bag and PE bag contons. General Carton
size:40*30*30cm
2.Customized according to customer's request
M8 connector can be used a wide fields like LED, Automation,
Sensor, mechanise equipment etc.
• LED lighting , white light , color light etc
• Low current equipement
• Connector be used in narrow environment
• Communication equipement
• Lighting harness
FAQ
1. Q: What type waterproof connector do you have?
We have a lot of types connector,most of our connector is
customized.We foucs on LED Waterproof connector, Assembly
waterproof connector,Over-mold waterproof connector,Sensor
connector etc, also customized according to your requirements.
2. Q: How to buy your products?
* Confirm the type of connector
* Confirm the Number of Connector
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way
3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than
10 years,So we can catch your problem,and solve it in a short time.
Rigoal-----Your Best Connection!
