Combination of m8 and m12 connector
| M8 connector | |
| Pin | 3 4 5 6 8 pin |
| Coding | A B D coding |
| Rated current | 1.5A for 8 pin; 2A for 6 pin; 3A for 5 pin;4A for 3 4 pin |
| Rated voltage | 30V for 5 6 8 pin; 60V for 3 4 pin |
| Material of connector | CuZn,TPU or PA |
| Cable size | 0.25mm2 for 3 4 5 pin; 0.14mm2 for 6 8 pin |
| M12 connector | |
| Pin | 3 4 5 8 12 17 pin |
| Coding | A B D X Y S T K L M coding |
| Rated current | 1A for 12 pin/2A for 8 pin/4A for 3 4 5 17 pin |
| Rated voltage | 30V for 8 12 pin/60V for 5 pin/250V for 3 4 17 pin |
| Material of connector | CuZn,TPU or PVC |
| Cable size | 0.34mm2 for 3/4 pin; 0.25mm2 for 5/8 pin; 0.14mm2 for 12/17 pin |
Different combination and color can be chosen
Choose one with or without LED
Product Structure detailed
Bright and full,firm connection,stable conductivity
Shielded and unshielded are available
According to your actual application,we can provide shielded or
unshielded cable
Wiring definition of m8 connector

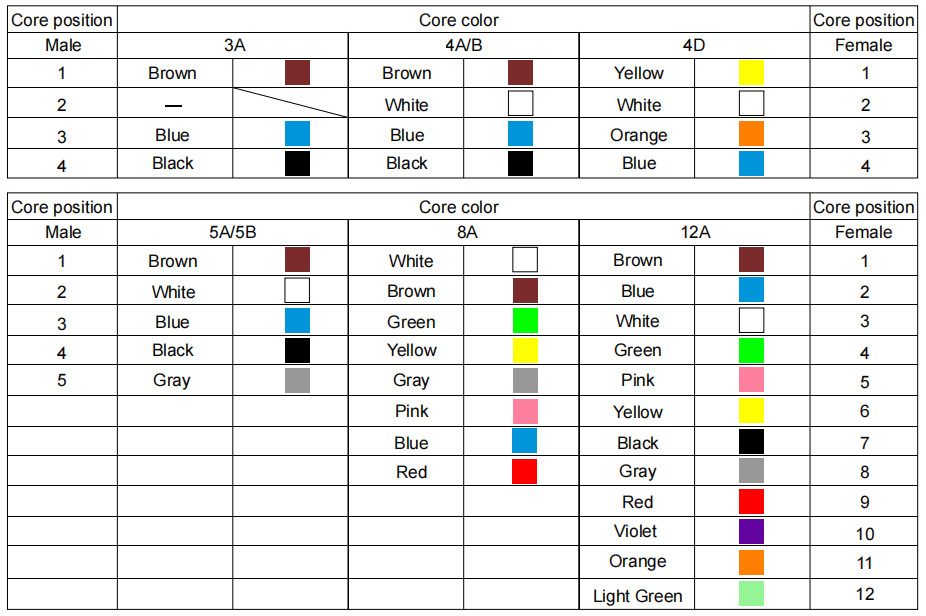

Wiring definition of m12 connector
Features of M12 connector:
1. Stable and reliable, not affected by the external environment
(such as temperature, humidity)
2.Waterproof and moisture-proof, to ensure the stability of the
circuit, M12 surface with a layer of coating (anti-corrosion,
Oxidation proof)
3.Oil resistance and welding resistance, reduce wiring so that the
equipment can be quickly put into operation, good mechanical and
electrical performance to ensure stability and reliability, process
related operation and function indicator LED can realize fault
diagnosis, very little downtime and maintenance time
Features of M8 connector:
1. Waterproof, moisture-proof, rain proof, sun proof and
anti-corrosion
2. Flame retardant, anti-oxidation and environmental protection
(all products are from green production lines)
3. Improve the production process: connectors simplify the assembly
process of electronic products and also simplify the batch
production process
4. Easy maintenance: In case of failure, it is not necessary to
clamp and break the cable, electric plastic sleeve, etc., but to
unscrew both ends of the waterproof connector. It is very
convenient for the maintenance of LED, solar energy, geothermal and
other waterproof products
5. Improve the flexibility of design. The use of connectors gives
engineers greater flexibility in designing and integrating new
products and using components to form systems
Applications of m8 m12 connector:
● Sensors, actuators, encoders, motors, industrial cameras, ships
and other equipment
● Factory automation process control
● Ship electronics NMEA 2000, rail transit
● Industrial equipment
● EMS circuit board assembly
● Industrial safety grating light curtain
● Packaging label printing equipment
● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet,
● Equipment batteries, semiconductors
● LED outdoor display, outdoor LED lighting
