Industrial M12 X Code Connector Metal Cable Plug And Socket Lan 8 Pin

Ask Lasest Price
Brand Name :	Rigoal
Model Number :	M12X-8P
Certification :	CE ， ROHS , IP68
Price :	negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	100000
Delivery Time :	7work day

Add to Cart

Product Details
Company Profile

Industrial M12 X Code Connector Metal Cable Plug And Socket Lan 8 Pin

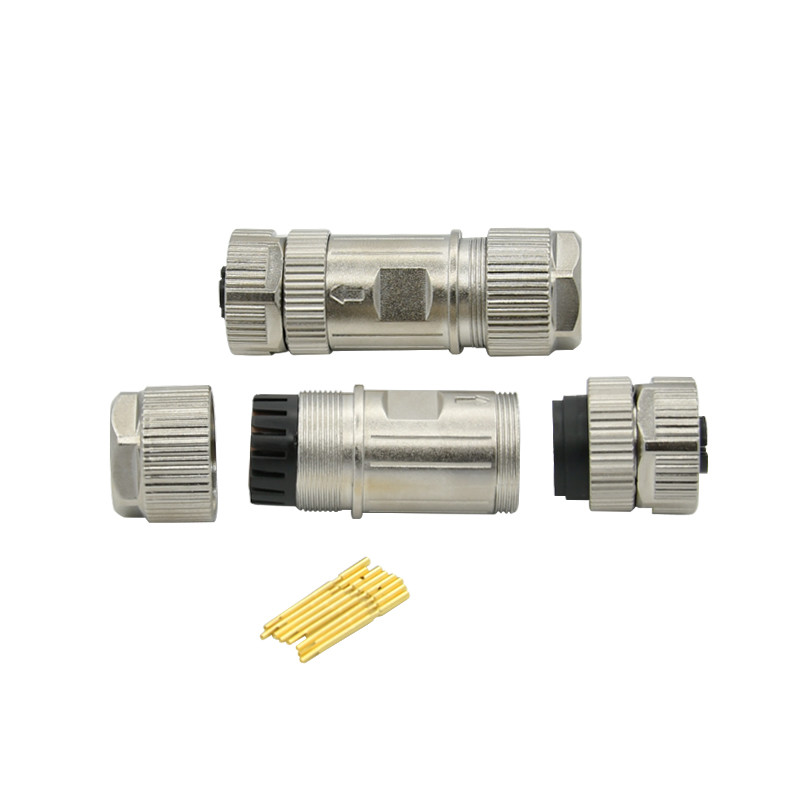

Industrial metal cable plug and socket lan 8 pin M12 X code connector

M12 X-coded circular connectors are designed for many automation applications, including Traffic rails, industrial cameras,
Ethernet switches, data transmission.
Hysik M12 X-code can provide 8Pin field wireable connector.The connection way about Male field wireable connector without wires is crimp connection.

Advantages
-Good sealing performance with IP calss up tp IP67.
-Used in the signal transmission ,datas trasmission,Power supply ect
-Campatible with same series connectors on the market
-Wire connection:Solder/Srew connection
-Shield is optional ,provide reliable electromagnetic Protection
-Wire connection method is optional,suitable for continuous shock and vibration environment
-Connection Technology is suitable for all application field

M12 X code connector Material

Product name	Industrial metal cable plug and socket lan 8 pin M12 X code connector
Material of contact	CuZn(Brass)
Contact plating	Au(Gold)
Material of contact body	PA66
Material of housing	CuZn(Brass nickel plated),PA
Connector locking system	Screw

M12 X code connector Technical Data

Insulation Resistance	DC500V±10%, test for 1 minute and the insulation resistance should be more than100MΩ
Contact Resistance	10mΩ at 10mA Max.
Dielectric Withstanding Voltage	1500 V AC contact-to-contact, for 1min.
Durability	4000 cycles insertion/extraction cycles at a maximum rate of 200cycles per hour.
Thermal Shock	5 cycles at -40°C / +105°C, after the test, the function and appearance can't be impacted.
Waterproof Test	Submersion in water 1 meter for 24 hours.

Industrial M12 X Code Connector Metal Cable Plug And Socket Lan 8 Pin

Rigoal connector is a reliable manufacturer who supplies various connectors with excellent quality. Moreover, our rugged waterproof technology brings out the advantages among other competitors. So the waterproof connector is surely the state-of-the-art product from our company.

The Waterproof Sensor Connectors apply to signal and small-current power usage of wireless outdoor AP, outdoor LED display and lighting, outdoor lamp, and automation machine. With strict quality monitoring, we are ready to present you our best products. Except for the fine quality materials, we also have tested our metal products in a 1M depth water environment for 24 hour to make sure its durability to water. If you are interested in our product, please do not hesitate and contact with us for our product today!

FAQ

Q1: Are you trading company or manufacturer ?

A1: We are manufacturer.

Q2: How long is your delivery time?

A2: Generally it is 3-5 days if the goods are in stock. or it is
10-15 days if the goods are not in stock, it is according to
quantity.

Q3: Do you provide samples ? is it free or extra ?

A3: Yes, we could offer the sample for free charge but do not pay
the cost of freight.

Q4: What is your terms of payment ?

A4: We accept bank transfer, TT, Paypal & Western Union, or other
methods.

Quotation will be send you within 24 hours after receiving your specific enquiry.

For more information and items, please feel free to contact us.
