Design as per DIN EN 175301-803,formerly DIN 43650
Degree of protection IP65/67
Version A,B and C are available
TPU over molded
Cable length customized,PUR and PVC cable options
LED indicator is available
DIN 43650 connectors are a series of connectors which are used with
solenoid valves. The Din 43650 connectors are normally used in
hydraulics and pneumatics. Other applications are pressure sensors
and switches, optical, limit and proximity switches.
Valve Connector Specification:
Waterproof: O-ring FKM
Protection:IP65/IP67
Connector over-mold: TPU
Contact Material: BeCu(Beryllium copper)
M3 Screw Material: Stainless Steel
High Temperature resistance
Resistance against chemicals and oils

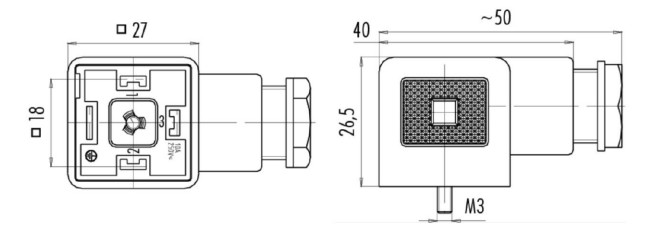

A type Pin dimensions: 18mm (2+PE,3+PE)
B type Pin dimensions:9mm /10mm/11mm(2+PE)
C type Pin dimensions:8mm or 9.4mm(2+PE,3+PE)
Led indication with different color(Yellow/Gray/Red...),Cable be
customized.
Low and high housing
Wired versions

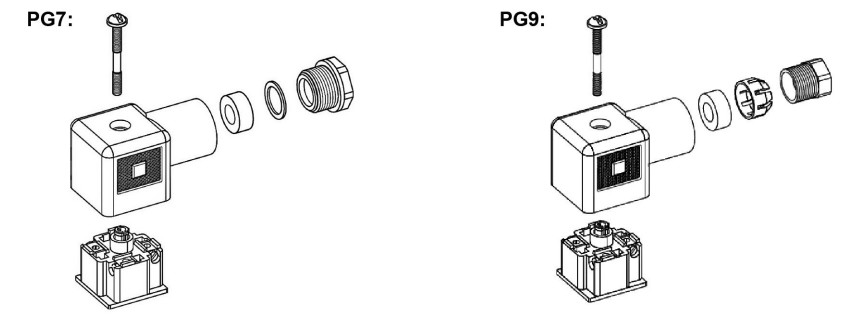

Moulded versions
Base,assembly and cable type
Series connection of LED and resistance shows the voltage used for
both AC/DC
Sample can be sent to you for test if you need.
Our production is fast and you can receive the solenoid valve
connector quickly.
Packaging & Shipping
1.Put them neatly in the carton
2.The small parts are packed in plastic bags and then put into
cartons
3.According to your requirement |
We will choose different transportation modes according to
customers' needs,which more convenient ,which we will choose!
Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping
,training shipping etc.
|
FAQ
Q1: Who are you? We are based in Guangdong, China, start from 2013,sell to Northern
Europe(18.00%),Central America(16.00%),North
America(13.00%),Western Europe(12.00%),Southern
Europe(12.00%),South America(10.00%),Eastern
Asia(5.00%),Africa(3.00%),South Asia(3.00%),Eastern
Europe(2.00%),Southeast Asia(2.00%),Oceania(2.00%),Mid East(2.00%).
There are total about 51-100 people in our office. |
Q2: How about the payment terms? A: we can do 30% deposit , 70% deposit before shipment and balance
against shipment |
Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days
for small order or the stock goods; 10 to 15 for mass production
after receiving your advance payment. The specific delivery time
depends on the items and the quantity of your order. Please contact
us for details. |
Q4: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and
precision mold since 2013 |
Q5:why choose us?
1/one of largest connector factory in asia
2/more than 8 years of export experience
3/good quality &factory directly low price
4/more than 8 years manufacture experience accepted OEM&ODM
service |
Q6:what can you buy from us?
waterproof cables, waterproof connectors, power connectors, signal
connectors, network connectors, etc., such as, M5,M8,M12,M16,M23,
D-SUB, RJ45, AISG,SP series connectors, etc. |
Q7: what services can we provide?Our services
- Fast Samples delivery service
- Quote within 24 hours
- Professional teams with RD & Sales for your projects
- Special service for your urgent case
- Customer is always our focus. |
Contact us any time if you have any interested!
