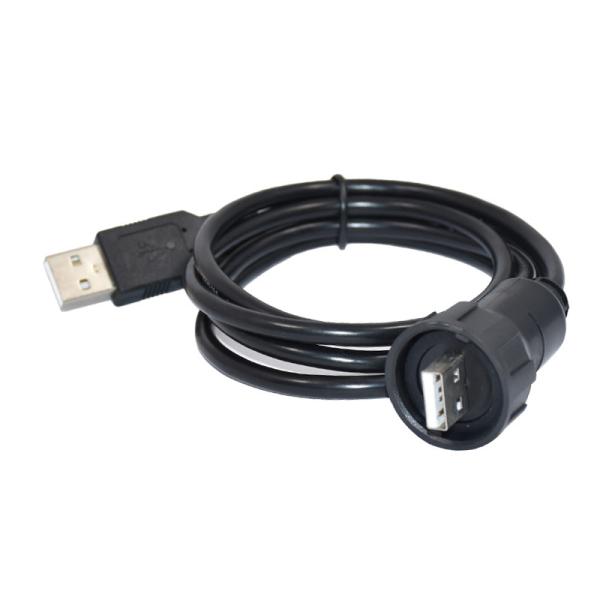

USB 2.0 Type A male to Male Panel Mount Receptacles Socket w/40
Extension USB Cable
USB2.0 waterproof connector
| Specifications |
| Connecting mode | Latching Lock connect |
| Protection level | IP65/IP67 |
| Cable specification | 0.15mm2 ~ 0.2mm2 /26~24AWG |
| Diameter range | Φ5.5mm ~Φ6.5mm |
| Contact diameter×Qty | 9 |
| Current rating(A) | 1.5A |
| Temperature rise | / |
| Withstanding voltage(AC.V)1min | 1000V |
| Contact resistance | <30mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |
| Material |
| Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics |
| Sealed against dust and fluid (IP65/IP67) |
| Vibration resistance,impact resistance,stretching resistance |
| socket with cover |
| Application industries |
| Stage equipment - The smart grid |
| Medical equipment - Server |
| Solar energy equipment - Ship equipment |
| Electric power equipment - Vehicle equipment |
| Communications equipment - Heavy machinery |
Industrial USB 2.0 Plug Socket IP65 Waterproof connector with USB
Data Cable
Features:
1. Varies types, can achieve male &female conversion docking,
independent female, male with cable, etc;
2. Independent USB2.0 socket design, easy to install &operate;
3. Compatible with USB2.0;
4. Sheath of cable protect cable outlet;
5. Cable can be customized;
6. Solid connections system can provide the solutions for data
transmission in harsh environments
7. Protection level: IP67 Waterproof;
8. More Than 4 PIN USB Connector, USB to RJ11 Connector Similar to
Hard Disk.
With PBT shell performance stable, compression, anti-explosion and
anti-deformation unique dock connecting to extend cable length and
Solid connections system can provide the solutions for data
transmission in harsh environments, easy to install and operate.
Widely used in: computers, digital cameras, scanner and other
transmission equipment. Varies types, can achieve male and female
conversion docking, independent female, male with cable and so on.
Quality Management
Test & Inspection we do to ensure our high-quality of connectors
As an International Cable Assembly and Harness Supplier, we are
committed to guarantee perfect quality to our customers. Our
commitments on "high quality" come from our team’s comprehensive
understanding in quality. We have designed strict audit and quality
control process to assure ourselves and our suppliers are offering
the best practice.
Certifications
Package&Shipping:
Packaging Details: IP68 front panel mounted male female waterproof rj45 connector
with ethernet cable will be packed in one small bag and then put in
one box.If you need custom package, we will do as your requirest.
Delivery Detail: About 7 workdays after payments.
