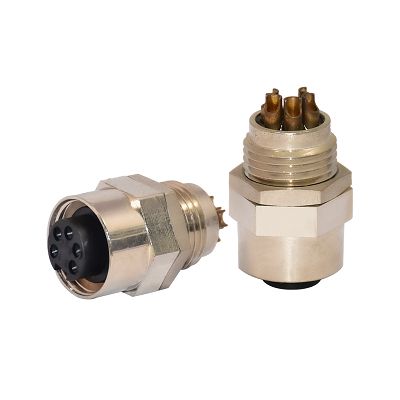

7/8 panel mount waterproof connector
7/8" circular connectors
-Screw locking 7/8" -Pre-molded with cables or soldered with single
wires for immediate use
-Sealed on the single wire side for optimum leak-tightness
-Panel mount receptacles: rear/front mount
-Versions with 3(2+PE), 4(3+PE), 5(4+PE) pins
-Solder/ dip-solder PCB connection
-Degree of protection IP67
-Customer specific assemblies and single wire lengths available
Production datesheet
| 7/8 catagroy: | 7/8'' molded type and panel mount connector |
| Connector Series: | 7/8 inch mini-change connector |
| Gender: | Male and Female |
| Locking Type: | Fix Screw |
| Mounting Type: | Angled and Straight |
| CONTACTS NUMBER: | 3pin, 4pin, 5pin, 8pin |
| Operate Temp. : | -25℃ ~ +85℃ |
| Insert Material : | PA |
| Contact Material : | Brass Gold Plated |
| Nut / Screw : | Brass Nickel Plated |
| IP Rating : | IP67 in Locked |
| Seal / O-ring : | Epoxy Resin / FKM |
| Insulation Res. : | ≥ 100 MΩ |
| Contact Res. : | ≤ 5 mΩ |
| Shielding : | available |
7/8 inch Male Female Assembly Cable Plug
Supply straight male and female type connectors for free assembly
with solder terminal connection.
Advantages:
1. High degree of protection IP67, safe to use on site
2. High quality gold-plated solid phosphor bronze contacts, ≥ 600
times mating life
3. Anti-vibration locking screw design
4. Support samples, retail and bulk orders
 | Rated temperature:-25°C ~ + 80°C
Insulation resistance:≥100 MΩ
Contact resistance:≤5mΩ
Impulse voltage:2500V
O-ring:FKM/Silicon
Pollution degree:3 Wire length:0.25m |
 |  |
Certifications
Package&Shipping:
Packaging
1. Generay Package :Each pcs put in one samll waterproof PE
bag,then put in a carton
Details: Add the label, about 200 hundred pieces connector put in
one carton, Carton size:46*30*30cm
2. OEM/ODM package is avaiable
3. According to customer choice.
Shipping
We can according to customer request choose different ship
way,which more converence ,which we will choose!
