IP67 IP68 3 4 5 6 8 12 17 pin pole A B D code panel wall mount m5
m8 m12 m16 m23 wire connector
Techanical Date
| Place of Origin | China |
| Guangdong |
| Brand | Rigoal |
| Pin | 3 4 5 6 8 12 17 pin |
| Coding | A B D coding |
| Gender | Male and female |

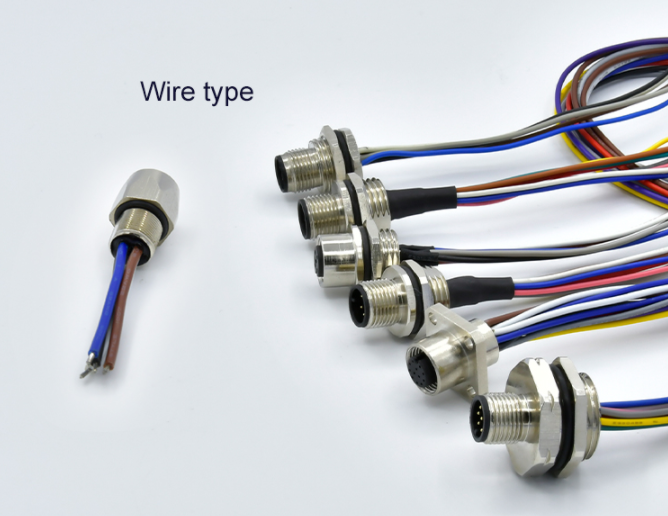

| Type | panel mount/assembly/cable |
| Rated current | 1A for 12 pin/2A for 8 pin/4A for 3 4 5 17 pin |
| Rated voltage | 30V for 8 12 pin/60V for 5 pin/250V for 3 4 17 pin |
| Operating Temperature | -25°C~85°C |
| Degree of protection | IP67/IP68 |
| Connector locking system | Solder/Pcb/Wire |
| Mechanical operation | >500 mating cycles |
| Contact resistance | ≤10mΩ |
| Material of connector | CuZn,TPU |
| Contact plating | Au(gold plating) |
| Material of housing | Brass/Zinc diecasting nickel plated |
| Custom | Acceptable |
Product display
Panel mount connectors can be customized in different types
according to different usage scenarios
We strictly control every detail and provide you with high-quality
products
Interface standard and number of cores
We can support A/B/C/D/ interface standards and 2/3/4/5/6/8/12/17
core count customization
Panel installation
Choose front lock or back lock according to your needs
Nut size
Customize the size of the panel nut according to your needs

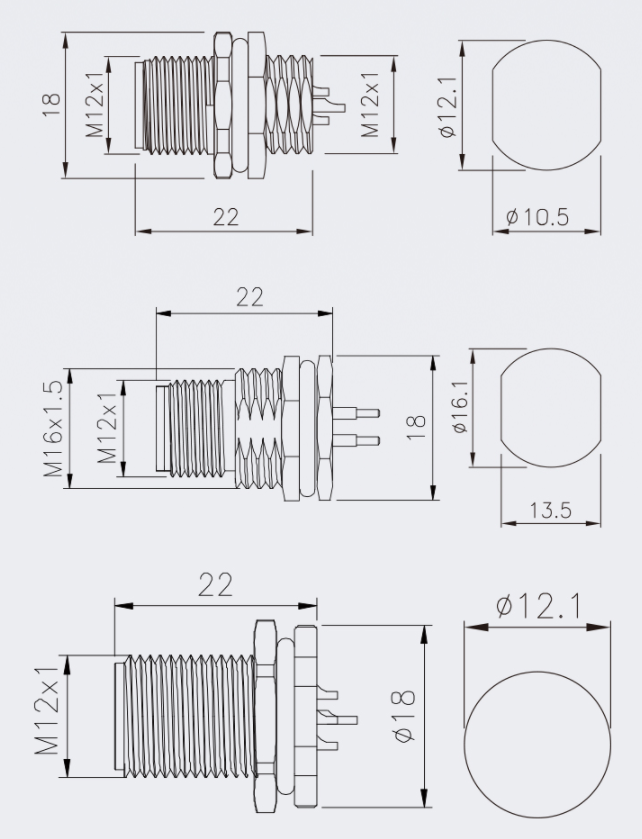

M8 panel drawings:
M12 panel drawings:
Product packaging
1.Each piece in one PE bag, then put in a small carton
2.OEM package is avaiable
3.According to customer requirement
Transportation
We can according to customer request choose different transport
way,which more converence ,which we will choose!
Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping
,training shipping etc.
Company Profile
Rigoal was founded in 2013, and devoted ourselves to be the high
quality & efficience manufacturer.
We specialized in producing waterproof cables & waterproof
connectors such as M8, M12, M16, M23, D-SUB.
Mainly applied in sensors, industrial equipments, transportation
facilities, medical devices, LED displays,
outdoor advertisements, communication devices,wind energy devices,
vessel industrial and Surrounding the car electronics industry and
so on.
Our products mainly exported to developed industrial countries such
as America, Austria, Sweden, Belgium, Germany, Netherlands,
British, Spain and Asian, Israel. Meanwhile, we have agents and
customers all over the world and speaking highly of by our
customers.
Our philosophy and purpose is: Customer Foremost, Service First.
Quality first.
Warmly welcome you join in us, your support will be always our
motivation.
Let's go forward hand in hand to create a brilliant future.
Rigoal----Your Best Connection!
Customer feedback
Certification
FAQ
1. who are we?
We are based in Guangdong, China, start from 2020,sell to Northern
Europe(18.00%),Central America(16.00%),North
America(13.00%),Western Europe(12.00%),Southern
Europe(12.00%),South America(10.00%),Eastern
Asia(5.00%),Africa(3.00%),South Asia(3.00%),Eastern
Europe(2.00%),Southeast Asia(2.00%),Oceania(2.00%),Mid East(2.00%).
There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final
Inspection before shipment;
3.what can you buy from us?
Waterproof connector,waterproof connector cable,power waterproof
connector,LED waterproof connector,RJ45 waterproof connector
4. why should you buy from us not from other suppliers?
Rigoal has more than 12 years of manufacturing and trading
experience,which is specialized in producing various power
waterproof connectors
such as RJ45, K20 series,USB, D-SUB,and M12 series. Our products
have obtained certifications of ISo9001,CE and IP68.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit
Card,PayPal,Western Union,Cash,Escrow; Language
Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
