Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug

Shenzhen Rigoal Connector Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug from wholesalers

    Buy cheap Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug from wholesalers
    • Buy cheap Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug from wholesalers
    • Buy cheap Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug from wholesalers
    • Buy cheap Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug from wholesalers
    • Buy cheap Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug from wholesalers

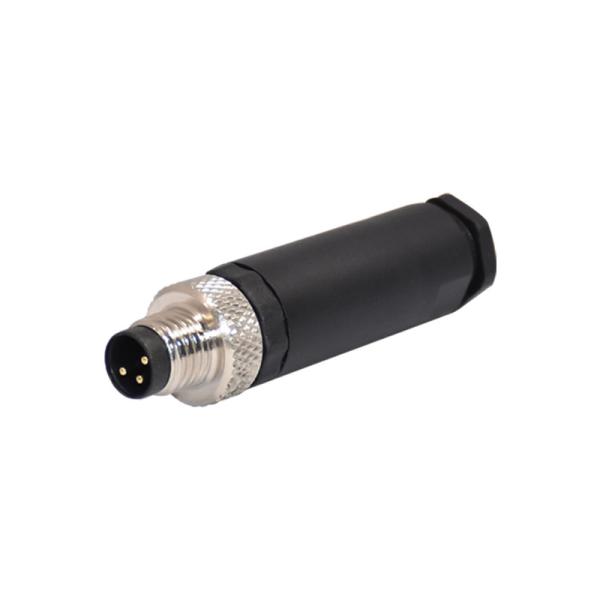

    Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug

    Ask Lasest Price
    Brand Name : RIGOAL
    Model Number : M8 assembly
    Certification : CE , Rohs , IP68
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000
    Delivery Time : 30work day
    • Product Details
    • Company Profile

    Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug

    Title goes here.
    Available Description:
    Stainless steel screw is available
    IP67/IP68, RoHS, certificate

    Generally Description:
    Connector Series: M8
    Standard: IEC 61076-2-101
    Coding: A
    Pins: 3 / 4 pins
    Gender:Male&Female
    Connector Locking System: Fix screw
    Waterproof Rating: IP67/IP68
    Ambient Temperature: -25°C~+85°C
    Title goes here.
    Material:
    Connector Body: PA66+GF
    Contacts: Phosphorus copper with gold plated
    Screw/Nut: Brass with nickel plated
    Waterproof 0-ring: FKM
    Glue: Black epoxy resin
    Wire Jacket: PVC

    Electrical data:
    Rated Current: 1A
    Rated Voltage: 60V
    Contact Resistance: ≤3mΩ
    Insulation Resistance: ≥100MΩ
    Specification
    item
    value
    Place of Origin
    Shen zhen,China
    Brand Name
    RIGOAL
    Model Number
    M8 assembly
    Type
    DIN
    Application
    Automotive
    Gender
    male
    Pins
    4p, 5P, 3P, 8P, 6P
    Coded
    A/B
    Rated Current
    3/1 A
    Insert material
    PA66+30%GF
    Waterproof degree
    IP67/IP68
    Certification
    CE ROHs
    Rated Voltage::
    60/30 V
    Contact material
    copper (gold-plated)
    Temperature range
    -40~+80
    Connector insert
    TPU
    Connector A Housing Gender:
    Socket
    Packing & Delivery
    To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
