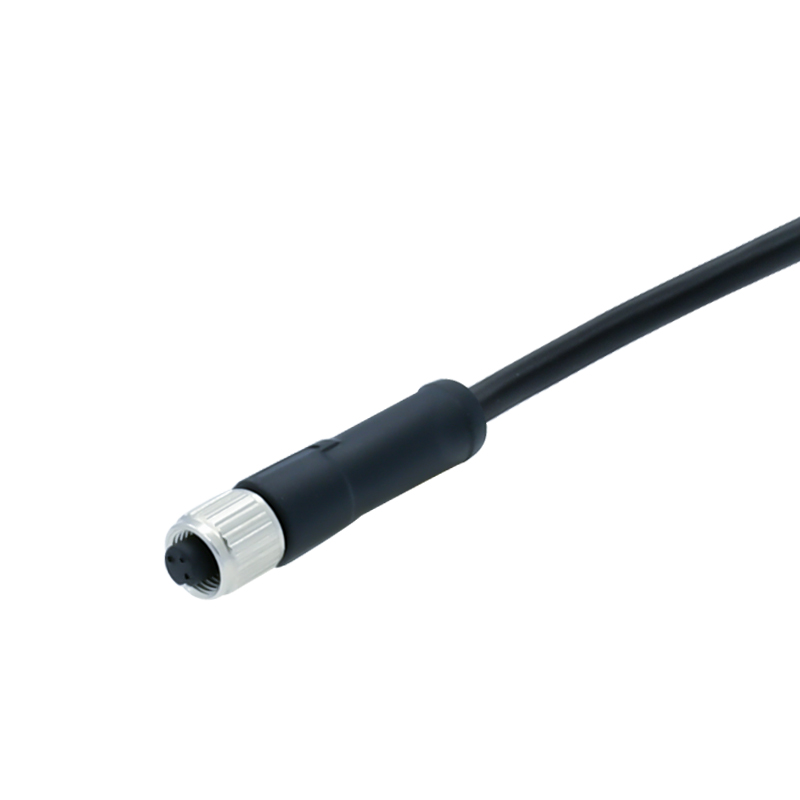

    IP68 Waterproof Cable Connector Male To Female M5 M8 M12 M16 Molding Cable

    Ask Lasest Price
    Brand Name : Rigoal connector(RG)
    Model Number : m5 molding, M5 Connector
    Certification : CE , Rohs , IP68
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000
    Delivery Time : 30work day
    • Product Details
    • Company Profile

    IP68 Waterproof Cable Connector Male To Female M5 M8 M12 M16 Molding Cable

    IP68/IP67 male to female m5 m8 m12 m16 waterproof connector cable connector M series

    item
    value
    Place of Origin
    China
    Guangdong
    Brand Name
    Rigoal connector(RG)
    Model Number
    m5 molding
    Type
    molding
    Application
    Industrial
    Gender
    male and female
    Place of Origin
    China
    Model Number
    M5 Connector
    Application
    Automotive, Automotive,industrial,LED,electrical
    Pins
    4p, 5P, 3P, 2P
    Cable material
    PVC/PUR
    Rated current
    1A
    IP degree
    IP67/IP68
    color
    black
    Brand Name
    Rigoal connector
    Gender
    male and female
    Product Description
    M5 electronic components for applications such as machine condition
    monitoring, thickness gages, video probe for remote
    inspection and soil moisture sensors.

    M5 connectors are available with 3 and 4 poles and are equipped with a threaded ring with an anti-vibration lock. The protection
    class is IP67/IP68. The cable parts of M5 connector have overmoulded cables. The outer diameter is 6.5 mm. The rated voltage is 60
    V, the max. current is 1 A.
    Size: M5 x 0.5 with screw locking

    Features of M5 connector :

    1. Connector M5 x 0.5 with screw interlock
    2. Connector over-moulded on cable
    3. Threaded ring with vibration resistance
    4. IP67 protection
    5. 3 and 4 -pole designs
    6. 2 m and 5 m cable length (PVC/PUR) Other cable lengths for quantities of 200 each or more are available upon request
    M5 Connector Specification:
    Wire gauge (AWG): 22AWG / 24AWG
    Wire gauge (mm²): 0.34mm² / 0.25mm²
    Jacket material: PVC
    Ambient Temperature: -25°C ~ +85°C
    Insert: PA66+GF
    Contacts: Phosphorus copper with gold plated
    Screw: Brass with nickel plated
    Connector locking system: Screw locking
    Mechanical operation: >100 mating cycles

    Rated current: 1A
    Rated voltag: 60V
    Contact resistance: ≤5mΩ
    Insulation resistance: ≥100MΩ
