    ISO9001 M16 PA66 Waterproof Power Cord Connector 500v Straight Orientation

    Ask Lasest Price
    Brand Name : Rigoal
    Model Number : Plastic vertical
    Certification : CE , Rohs , IP68
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000
    Delivery Time : 30work day
    • Product Details
    • Company Profile

    ISO9001 M16 PA66 Waterproof Power Cord Connector 500v Straight Orientation

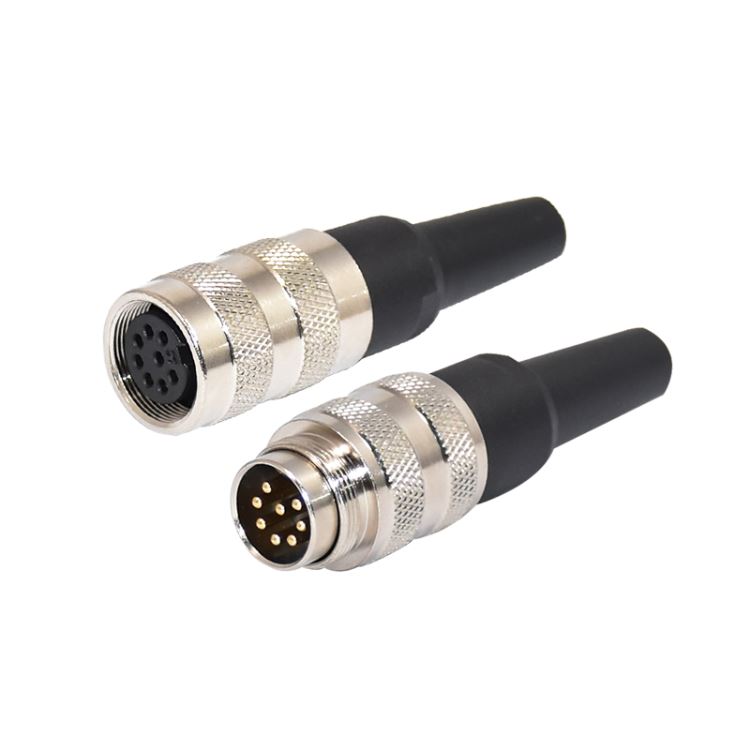

    M16 waterproof power cord connector

    With a rugged metal housing and environmental protection rating of IP67 when mated, this robust M16 DIN connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.

    M16 series connector equivalent as Binder eries 423, 723 and 425 family of connectors are rugged, high-performance circular connectors with excellent EMI shielding and IP67. Ideal choice for severe industrial and commercial applications. Panel-mounted receptacle are available in many styles and mounting methods.
    Rugged metal shells
    Straight or right-angle cable connector
    Right-angle cable connectors adjustable in 4 radial positions
    Excellent 360° EMI shielding and IP67
    Internal strain relief
    2 to 24 contacts,gold(Au)- or silver(Ag)-plated
    DIN EN 61076-2-106

    M16 Straight female male 2pin 3pin 4pin 5pin 6pin 7pin 8pin 12pin 14pin 16pin 19pin 24pin rear panel mount connector

    ISO9001 M16 PA66 Waterproof Power Cord Connector 500v Straight Orientation


    ISO9001 M16 PA66 Waterproof Power Cord Connector 500v Straight Orientation


    StardardIEC 61076-2-106
    Rated current5a-7a
    Rated voltage500v-1500v
    Couplingg nutBrass with nikel palsted screw
    Orientationstraight
    IP ratingIP67
    Connector contactsBrass with gold plated
    Ambient temperature-25°C ~ + 85°C
