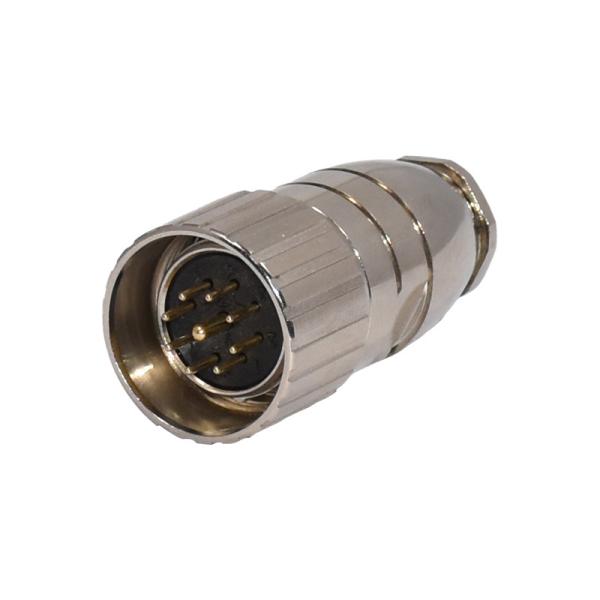

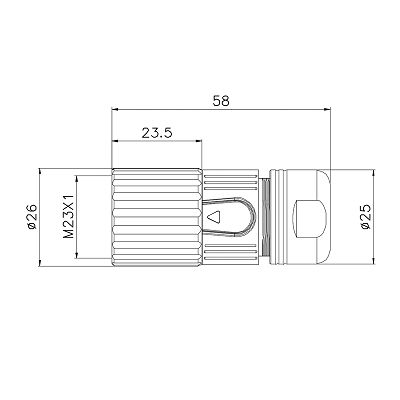

M23 molding type waterproof cable
M23 waterproof connector was specially developed for harsh
operational enviroment; it ensures the operation stability under
moisture, vibration and temperature change.
Circular M23 may be utilized in wide-ranging application, such as
industrial automation machinery and medical equipment; due to the
variations in electric current, customized pin configurations are
available to the customer. Circular M23 with over molded cable
type, assembly and pannel type, designed for primarily transferring
both power and analog or digital signals; Metallic external shield
combined with removable internal plastic component and terminals.

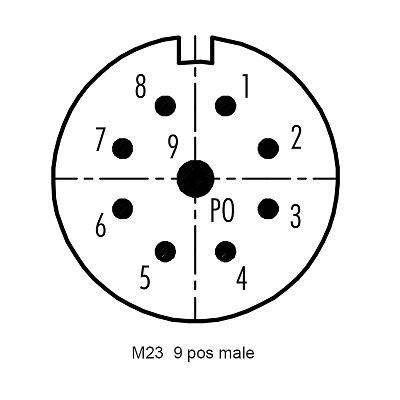

| Series | M23 |
| Coupling | Threaded Coupling |
| Terminal | Crimping |
| Number of Contacts | 6 / 7 / 9 / 12 / 17 / 19 Pin |
| Gender | Male / Female |
| Orientation | Straight |
| Termination | Soldering |
| Rated Current | 26A-600V / 28A-600V |
| Insulation resistance | 3000 |
| Temperature Range | -25°C ~ + 80°C |
| Contact material | Copper ( Silverplated / Gold ) |
M23 series connectors provides a wide range of metric for small
sensors and actuators. The Field attachable / mountable connector
is also available for your choice. ingress protection is available
and rated to IP 67, these connectors are ideally suited for
industrial control networks where small sensors are required.
Connectors are either factory TPU over-molded or panel receptacles
supplied with sold-cup for wire connecting or with PCB panel solder
contacts.
Connector specification
Degree of protection IP67/IP68
3 4 poles are available
Anti-vibration locking screw design
RoHS & REACH Compliance
The cable material have pur or pvc for choose.Length according to
customer demand
Equivalent to Binder, Phoenix
UL/CE/RoHS/NMEA
