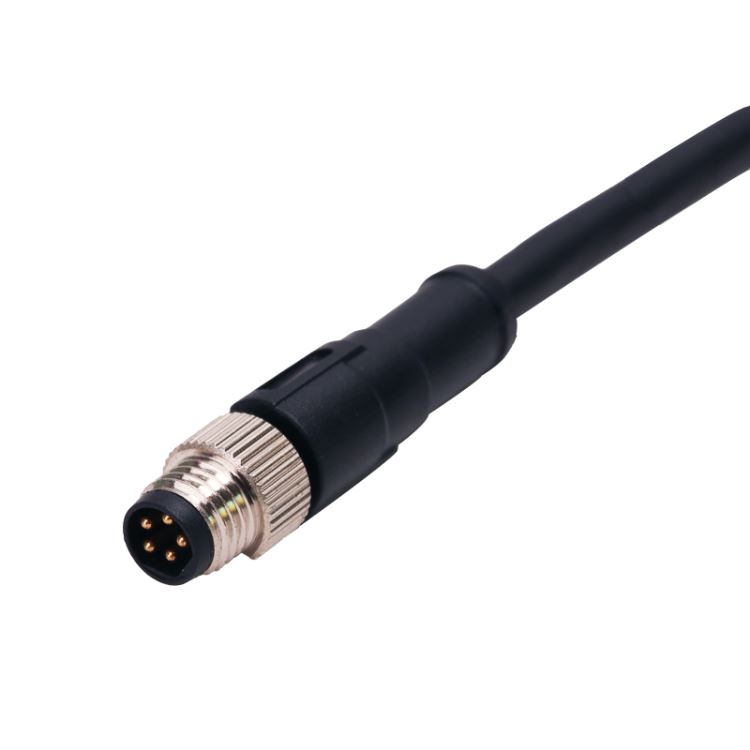

M8 connectors of different types wholesale

Product Description

Connector Series: M8
Standard: IEC 61076-2-104
Coding: A
Pins: 3 pin, 4 pin, 5 pin, 8 pin
Gender: Male / Female
Connector Design: Cable plug
Connector Locking System: Fix screw

Waterproof Rating: IP67/IP68
Ambient Temperature: -10℃~+80℃

Connector Specification:

Connector Body: TPU

Male Contacts: Brass with gold plated
Screw/Nut: Brass with nickel plated

Waterproof 0-ring: FKM

Electrical Data:
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ
Rated Current: 3A~1A
Rated Voltage: 60V~30V

Cable/Wire Specification:
Wire gauge (AWG): 22AWG / 24AWG
Wire gauge (mm²): 0.34mm² / 0.25mm²
Jacket material: PVC
Ambient Temperature: -25°C ~ +85°C

Packaging & Shipping

Packaging: Individual packed in transparent PE bag with label.

OEM/ODM Packaging: Yes, we can do your own packaging, like do your logo on the PE bag.

Shipping: by DHL, UPS, FeDex, TNT door to door service, by normal air freight, by normal sea freight.

Our Services

• Low cost but good quality in ip67/ip68 waterproof in locked condition with ISO9001 management under efficient service.
• Provide free samples within 2 working days if it is the normal product with existing tooling.
• OEM & ODM is available.

Quality Control

• All materials conform to RoHS, REACH without any harmful substance comprising strickly checked by QC.
• 100% testing for open circuit and short circuit and 100% smooth operation before shipping.

Company Profile：

Factory profile：

Shenzhen Rigoal Connnector Co.,Ltd. was established in 2013 years and is located in Shenzhen, China,enjoying convenient transportation and beautiful environment. Our company covers an area of 3500 square meters and has 160 employees at present. Company has obtained ISO9001 2015 certification.

We are specialized in waterproof connector and cable.Rigoal company focus on ODM and OEM connector and cable. Our company has rich experience in the senor , power and Ethernet industry. Our main products include M5 M8 M9 M10 M12 M16 M18 M20 M23 M40 RD24 RD30 mini7/8 etc circular waterproof connector and cable. push-pull connectors ,Solenoid value connector, RJ45 USB D-SUB waterproof connector and LED area power waterproof connector and cable .Plastic T or Y type connector and cables .Most of our products have got UL CE Rohs IP68 etc certificates.Besides, we are making great efforts to develop new products to meet different requirements. Welcome your custom-made.

Our products mainly clients in Europe ,USA, Australian,Korea etc. We also welcome all over the world orders.Our company has 30 equipment to strictly control the product quality.Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success.
