Solenoid value square base A type
DIN 43650 FORM A - FORM B - FORM C - SOLENOID VALVE CONNECTORS

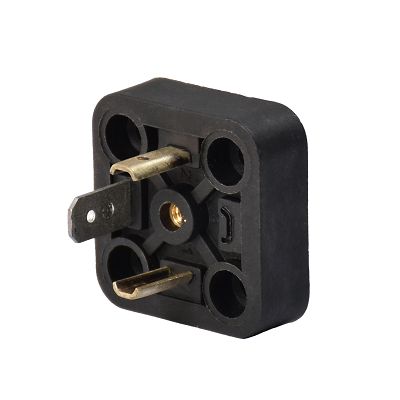

Din43650 form A male 2 3 poles+ground panel mount connector,solder
termination and incudes center retaining nut,incudes M3x10mm screw
and M3 x 5mm screw.
DIN 43650 connectors are a series of connectors which are used with
solenoid valves. The Din 43650 connectors are normally used in
hydraulics and pneumatics. Other applications are pressure sensors
and switches, optical, limit and proximity switches.
Solenoid valve connectors are manufactured in the standard
varieties as well as they can be cutomized to customer
specifications.
Valve Electrical Data:
Rated current: 8A / 10A
Rated voltag: 24V / 250V
Contact resistance: ≤4mΩ
Insulation resistance: ≥100MΩ
Valve Connector Specification:
A type Pin dimensions: 18mm (2+PE,3+PE)
B type Pin dimensions:9mm or 11mm(2+PE)
C type Pin dimensions:8mm or 9.4mm(2+PE,3+PE)
Waterproof: O-ring FKM
Connector over-mold: TPU
Material of female connetor contact: PS with silver plating
Connector screw: Shell with Zn plating
Connectors come in variours"Forms"depending on the configuration of
pins and dimensions,the forms are available liste below
* Din Form A
* Din Form B
* Din Form C
Soleniod valve connector Specification:
IP65 UL Rohs CE approved
Equivalent to Binder ,Lumberg etc
OEM or ODM are available
Ambient temperature: -40°C~+125°C
Polarity: 3P 4P 2+2PE 3+PE
Coding: A/B/C
Free LOGO on overmold of connector
