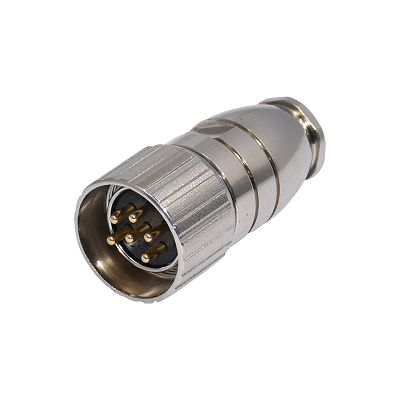

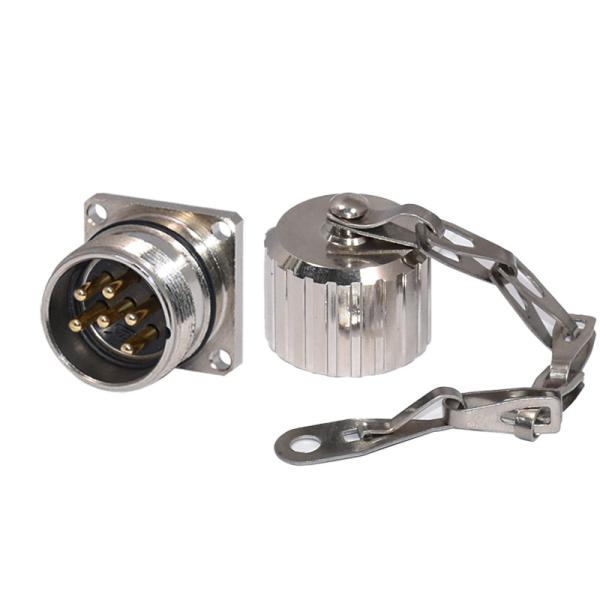

Assembly power waterproof connector
| Series | M23 |
| Connector type | Cable Plug/Panel Mount Socket |
| Number of Conntacts | 4/6/7/9/12/16/17 Pin |
| Gender | Female/Male |
| Orientation | Straight/Angled |
| Termination | Solder/PCB |
| Rated Current | 4A/2A/1.5A |
| Operating Voltage | 250V/60V/30V |
| Temperature Range | -25℃~+80℃ |
| IP Rating | IP67 |
| Series | M23 |
| Connector type | Cable Plug/Panel Mount Socket |
| Number of Conntacts | 4/6/7/9/12/16/17 Pin |
| Gender | Female/Male |
| Orientation | Straight/Angled |
Advantages:
1. High degree of protection IP67, safe to use on site
2. High quality gold-plated solid phosphor bronze contacts, ≥ 600
times mating life
3. Anti-vibration locking screw design
4. Support samples, retail and bulk orders
 | M23 series connectors provides a wide range of metric for small
sensors and actuators.The Field attachable / mountable connector is
also available for your choice. ingress protection is available and
rated to IP 67, these connectors are ideally suited for industrial
control networks where small sensors are required. Connectors are
either factory TPU over-molded or panel receptacles supplied with
sold-cup for wire connecting or with PCB panel solder contacts. |
Certifications
The connector products are widely used in bus components, ethernet,
solenoid valvees, press stiches, motors-control, protoelectric
barries, flow monitoring devices, proximity switches, and sensors
in hydraulic, pneumatic and automation industries.
Package&Shipping:
Packaging
1. Generay Package :Each pcs put in one samll waterproof PE
bag,then put in a carton
Details: Add the label, about 200 hundred pieces connector put in
one carton, Carton size:46*30*30cm
2. OEM/ODM package is avaiable
3. According to customer choice.
Shipping
We can according to customer request choose different ship
way,which more converence ,which we will choose!
