T type 4 port power connector
Available Description:
Stainless steel screw is available
IP67/IP68, RoHS, REACH, UL certificate
Generally Description:
Connector Series: M12
Standard: IEC 61076-2-101
Coding: A
Pins: 3 / 4 / 5 / 6 / 8 / 12 / 17 /pins
Gender:Male&Female
Connector Design: Panel mount
Connector Locking System: Fix screw
Waterproof Rating: IP67/IP68
Ambient Temperature: -25°C~+85°C
Material:
Connector Body: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Glue: Black epoxy resin
Wire Jacket: PVC
Electrical data:
Rated Current: 4A
Rated Voltage: 250V
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ

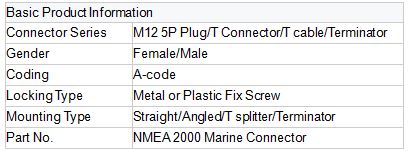

Product parameter
GJQ steamship waterproof 2 3 4 5 6 pin male female M12 NMEA 2000
electrical T connector and M12 cable.
1. IP68 T-shaped connector 5-pin plug fusion cable.
2. Cable joint material: PVC, nylon PP, rubber
3. You can connect men to women. You can also use 1m or other
length of wire to customize the extension cable (one side is a
female waterproof plug; the other is a female waterproof plug).
4. Can provide you with customized solutions.
5. Can provide colors and materials, and terminal processing.
6. Professional R & D team can help customize the project.
Certifications
Our Services
1, We are the manufacture, Rigoal is our brand, Rigoal has built a
great reputation in China even around the world.
2, We guaranteed that 100% in good quality, the price will be
reasonal.
3, All the inquiry will be response within 24 hours, the
commucation will be effective.
4, Special feature and service can be provided upon requirement.
Package&Shipping:
Packaging
1. Generay Package :Each pcs put in one samll waterproof PE
bag,then put in a carton
Details: Add the label, about 200 hundred pieces connector put in
one carton, Carton size:46*30*30cm
2. OEM/ODM package is avaiable
3. According to customer choice.
Shipping
We can according to customer request choose different ship
way,which more converence ,which we will choose!
FAQ
When can I get the quotation?
Within 24Hours after we get your inquiry. If you are very urgent to
get the price, please call us or advise in your e-mail so that we
will quote to you in priority.
What is the minimum order quantity (MOQ)?
100 pcs or negotiate.
What kind of certificates SIGANL have?
RoHS 2.0; REACH; UL; TUV; CE; IP67/68; IP69K; ISO9001:2015;
ISO14001:2015…
How long can I expect to get the samples? Should I pay for the
samples?
The samples will be ready to delivery in 3-7 days after you confirm
the drawing.
For standard products, you can get 2-4pcs free samples.
How about freight cost?
You can use your express account to ship or prepay the freight cost
to our bank account or Paypal account.
Can you provide customized products for us?
Yes. We have a professional team in providing customized solution
for you. Just tell us your idea and the related information you
have, then we will help to carry out. what kind of information you
should provide, just contact our sales, we will tell you.
What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place
the order. The lead time of MOQ is about 10 to 15 days. Generally
speaking, we suggest you start to inquiry two months before the
date you would like to get the products at your country.
How many materials you can provide?
For connector, we have plastic & metal materials. For cable, PVC &
PUR jacket are available.
Rubber/PU/PE/Silicone materials are used in cable. Of course, we
can also provide the materials based on your
requirements/applications.
