    150V IP67 M23 Male Waterproof Connector Screw Crimping Terminal

    Ask Lasest Price
    Brand Name : Rigoal
    Model Number : M23 connector
    Certification : CE ,Rohs , IP67
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000
    Delivery Time : 30work day
    • Product Details
    • Company Profile

    150V IP67 M23 Male Waterproof Connector Screw Crimping Terminal

    M23 male waterproof straight type power connector

    M23 waterproof connector was specially developed for harsh operational enviroment; it ensures the operation stability under moisture, vibration and temperature change.

    Circular M23 may be utilized in wide-ranging application, such as industrial automation machinery and medical equipment; due to the variations in electric current, customized pin configurations are available to the customer. Circular M23 with over molded cable type, assembly and pannel type, designed for primarily transferring both power and analog or digital signals; Metallic external shield combined with removable internal plastic component and terminals.


    Product parameter

    SeriesM23
    CouplingThreaded Coupling
    TerminalCrimping
    Number of Contacts6 / 7 / 9 / 12 / 17 / 19 Pin
    GenderMale / Female
    OrientationStraight
    TerminationSoldering
    Rated Current26A-600V / 28A-600V
    Insulation resistance3000
    Temperature Range-25°C ~ + 80°C
    Contact materialCopper ( Silverplated / Gold )
    image001(001)

    Product Introduction

    Product Name:

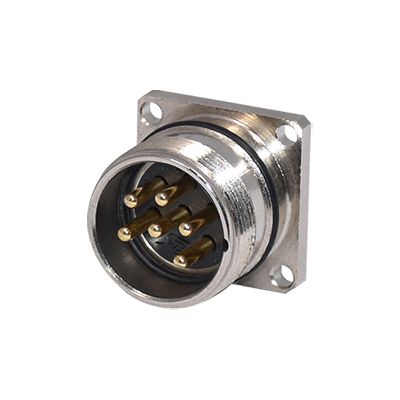

    Waterproof M23 Signal Square Flange Socket 6Pin Connector
    Model number:M23-17P-S
    Series:M23 Connector
    Pin number:6 pin
    Waterproof:IP67

    image003(001)image005(001)

    Available Description:

    Stainless steel screw is available
    IP67/IP68, RoHS, REACH, UL certificate


    Generally Description:

    Connector Series: M23
    Standard: IEC 61076-2-101
    Coding: A
    Pins: 6 9 12 16 19pin
    Gender: Female and Male
    Connector Design: Panel mount
    Connector Locking System: Fix screw
    Waterproof Rating: IP67/IP68
    Ambient Temperature: -40°C~+85°C


    Material:

    Connector Body: PA66+GF
    Contacts: Phosphorus copper with gold plated
    Screw/Nut: Brass with nickel plated
    Waterproof 0-ring: FKM
    Glue: Black epoxy resin
    Wire Jacket: PVC


    Electrical data:

    Rated Current: 8A 20A
    Rated Voltage: 125V 200V 300V

    Certifications



    Package&Shipping:

    Packaging
    1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton
    Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:40*30*30cm
    2. OEM/ODM package is avaiable
    3. According to customer choice.
    Shipping
    We can according to customer request choose different ship way,which more converence, which we will choose!
