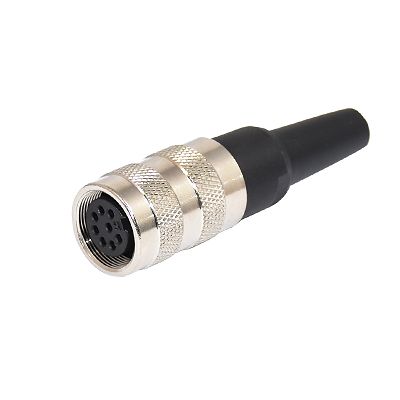

M16 female install waterproof connector
| Product types | IP65 IP67 electrical plug socket m16 series 7 8 12 14 16 19 24 pin
pole waterproof straight circular connector |
| Design Standard | IEC/EN 61984 Binder |
| Cable diameter | ≤Ф 6.0mm~ ≤Ф 8.5mm |
| Shell material | Zinc alloys with nikelplate |
| Contact material | copper( silver/ gold plated) |
| Insert material | PA66+GF20% |
| Assemble way | assemble board |
| Solder cup mouth aperture | 0.6~1 |
| Solder inter diameter | 0.5~1.5 |
| Rated current/voltage | 5A~7A, 60V~200V |
| Operation limit voltage(AC.V.rms) | 125V~250V |
| Withstanding voltage( AC.V.rms) 1minute | 500, 1500 |
| Insulation resistance (MΩ MIN) at DC 500V | 1000, 1500 |
| contact resistance (MΩ MAX.) at DC 1A | 7~12 |
| Mating cycle | 500 |
| MOQ | 1 PCS sample offer |
| Places of origin | China Guangdong |
| OEM | Yes,we accept |
| Payment terms | 100 % T/T,escrow,MasterCard credit card,e-Checking,Paypal,VISA |
| Delivery time | 3-45 days depends on buying stock or OEM order |
About M16 connectors:
This series connectors are widely used in the aerospace, military,
automotive, electric power, mechanical, automation, as well as the
electrical service industry. We design and produce according to
international and the U.S. military standard, our products can
substitute European, US and Taiwan connectors, own the same
quality.
Certifications
Package&Shipping:
Packaging
1. Generay Package :Each pcs put in one samll waterproof PE
bag,then put in a carton
Details: Add the label, about 200 hundred pieces connector put in
one carton, Carton size:46*30*30cm
2. OEM/ODM package is avaiable
3. According to customer choice.
Shipping
We can according to customer request choose different ship
way,which more converence ,which we will choose!
FAQ
Q1. Are you a manufacturer or trading company?
We are a professional manufacture of waterproof connectors with our
own factory and trading company.
Q2. What is the lead time?
Normally speaking, it asks for 5-30 days for mass production except
during observed holidays.
Q3. How about 4. OEM/ ODM Service?
Our professional R&D dept develop different products for
different target prices and different requirements.
Q4. What certification do you have?
The electrical connector have got CE Rohs UL certification for our
products.
Q5. What's your term of payment?
We prefer to T/T,escrow,MasterCard credit card,e-Checking,Paypal.
