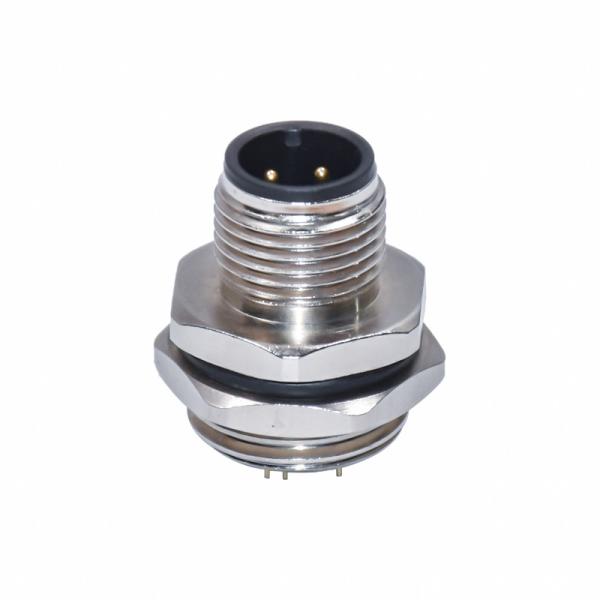

M12 male or female receptacle
Characteristics of M12 Series
| General Characteristics |
| Number of contact | 3 | 4 | 5 | 8 | 12 | 17 |
| Locking system | screw M12*1.0 |
| Termination | solder, moulded on cable, crimp or screw clamp |
| Wire guage in mm² | 0.14/0.25/0.34/0.5 etc |
| Wire guage in AWG | 26/24/22/20 etc |
| Shell protection | IP67/IP68 |
| Mechanical operation | >500 mating cycles |
| Upper temperature | +85℃ |
| Lower temperature | -25℃ |
| Electrical Characteristics |
| Rated voltage | 250V | 60V | 30V |
| Pollution degree | III |
| Test voltage | 500V±15V |
| Rated current(40℃) | 4A | 1.5A |
| Contact resistance | ≤10mΩ |
| Insulation resistance | ≥100MΩ |
| Materials |
| Pin contact | CuZn |
| Socket contact | CuSn |
| Contact plating | Au |
| Upper temperature | PA66(UL 94V-0) |
| Female insent | PA66(UL 94V-0) |
| Material of cable jacket | PVC or PUR |
| Screw | CuZn |
| Nut | CuZn |
1.What is the difference between M12 connector coding?
A-coded mostly used in sensors, actuators, motors, and most other standard
devices. it usually between 2 and 12 pins.
B-coded mostly used in network cables for Fieldbus connections, includes
systems that operate with Profibus. it typically have between 3 and
5 pins.
C-coded primarily used with AC sensors and actuators, and also have a dual
keyway for added security. it have between 3 and 6 pins.
2. What is the application prospect of M12 connector
M12 connectors will be more suitable for the Industrial Internet of
Things (IIoT).
The IIoT is a real-time data connection, driven by processing and
transmitting data at faster speeds, on progressively smarter and
smaller machines. The value of the IIoT goes beyond data collection
and transmission, it benefits including but not limited to the
ability to identify disruptions, discovering unused capacity,
reducing maintenance costs and downtime, improving safety, and
maximizing overall equipment effectiveness.
M12 connectors' advantages in the speed, reliability, and
ruggedness, etc perfect match the smart factories' demand.
