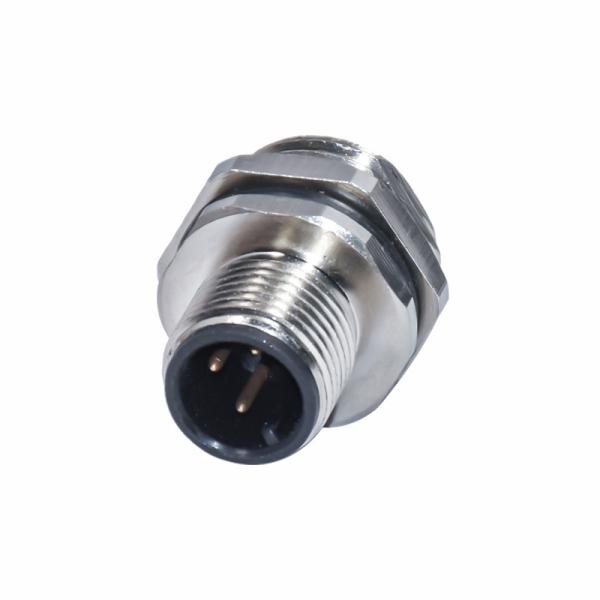

M12 male or female scoket
Characteristics of M12 Series
| General Characteristics |

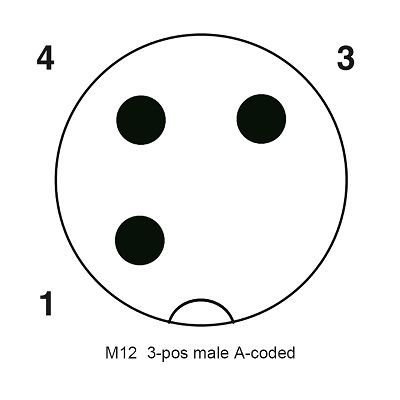

| Number of contact | 3 | 4 | 5 | 8 | 12 | 17 |

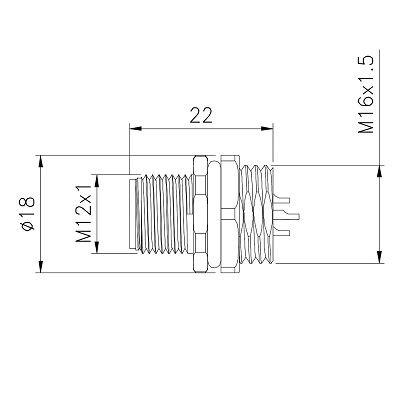

| Locking system | screw M12*1.0 |
| Termination | solder, moulded on cable, crimp or screw clamp |
| Wire guage in mm² | 0.14/0.25/0.34/0.5 etc |
| Wire guage in AWG | 26/24/22/20 etc |
| Shell protection | IP67/IP68 |
| Mechanical operation | >500 mating cycles |
| Upper temperature | +85℃ |
| Lower temperature | -25℃ |
| Electrical Characteristics |
| Rated voltage | 250V | 60V | 30V |
| Pollution degree | III |
| Test voltage | 500V±15V |
| Rated current(40℃) | 4A | 1.5A |
| Contact resistance | ≤10mΩ |
| Insulation resistance | ≥100MΩ |
| Materials |
| Pin contact | CuZn |
| Socket contact | CuSn |
| Contact plating | Au |
| Upper temperature | PA66(UL 94V-0) |
| Female insent | PA66(UL 94V-0) |
| Material of cable jacket | PVC or PUR |
| Screw | CuZn |
| Nut | CuZn |
M12 Circular Connector is Designed for Washdown and Corrosive
Environments, Primarily Used in Factory Automation Applications for
Actuators, Sensors, Industrial Ethernet, and Fieldbus.
M12 Series with Ip67/68 Rating, Provides with 2, 3, 4, 5, 6, 8, 12,
17 Contacts, Different Pin Match Specific Applications. E.g, Sensor
and Power Applications Require 3 or 4 Pins; Profinet and Ethernet
Require 4 or 8 Pin Counts; Fieldbus, Can Bus and Devicenet
Typically Use 4 or 5 Pin Counts; and Signal Requirements Usually
Employ 12 Pins.
We Supply Full Series of M12 with Field Wireable Connector, Molded
Cable Connector, Panel Connector, Overmoled Cables, Wire Harness
and Accessories. Pvc (general) or Pur (oil Resistant) Cables
Available with Customized Length According to User Requirements.
