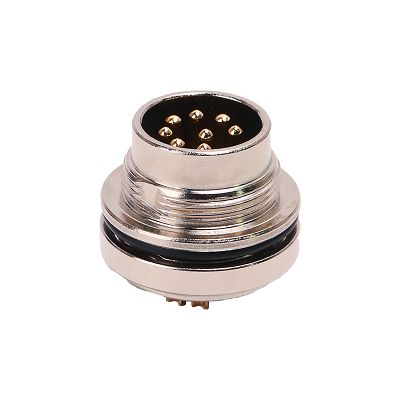

M16 male rear panel mount connector
Product diagram
Available Description:
Stainless steel screw is available
IP67/IP68, RoHS, REACH, UL certificate
Generally Description:
Connector Series: M16
Standard: IEC 61076-2-101
Coding: A
Pins: 2/ 3/ 4/5/6/7/8/9-----24pins
Gender:Male
Connector Design: Panel mount
Connector Locking System: Fix screw
Waterproof Rating: IP65/IP67
Ambient Temperature: -30°C~+90°C
Material:
Connector Body: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Glue: Black epoxy resin
Wire Jacket: PVC
Electrical data:
Rated Current: 3A
Rated Voltage: 250V
Contact Resistance: ≤10mΩ
Insulation Resistance: ≥100MΩ
Product parameter
Certifications
Package&Shipping:
Packing Details :
1. Our standard packing: Individual part with transparent PE bag
with label;
2. OEM package available
Shipping Methods :
1. Samples and Small quantity order
FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Our Services
Customers want
1. High quality and competitive price
2. Stable delivery and excellent service
3. Reliable warranty and after-sales service
We provide
1. 100% quality assurance, all broke parts can be guaranteed within
30 days after received.
2. According to customer requirement, provide 10 years warranty.
3. Repairs parts are available within 10years; EOL products will be
always informed to you.
4. Supply free LOGO to the surface of over-molded connectors upon
customers' requirement.
