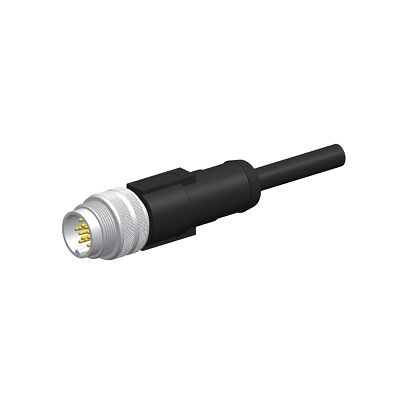

M16 feamle molding waterproof cable
| Item | value |
| Place of Origin | China |
| Guangdong |
| Brand Name | Rigoal connector(RG) |
| Model Number | M16 14 PIN connector |
| Type | Type connector |
| Application | Power and signal connection |
| Gender | Male and Female |
| Pins | 14P |
| Number of Cores | Fourteen Core |
| Model Number | M16 type connector |
| Type | ADAPTER |
| Application | power ,sensor,automotive,ethernet,car etc. |
| Gender | Male and female |
| Pins | 14pin |
| Connector locking system | screw |
| Termination | solder |
| Cable outlet | 6-10 mm |
| Degree of protection | IP67 |
| Mechanical operation | > 50 mating cycles |
M16 circular connectors
With excellent EMI shielding and an environmental protection rating
of IP40 when mated, this robust M16 Screw locking compliant with
DIN connector range is an ideal solution for ensuring that power
and signal connections are not compromised in harsh environments
and industrial applications.
Product Description
♦IP65/67 protection level
♦Connector Body:Nylon(PA 66)+GF UL94V-0 1/16
♦Sealing:Silica Gel
♦Contact:Brass with gold plated
♦Mating style:Thread
♦Temperature Rating:-40°C~+105°C
♦Contact resistance:20MΩ
♦Insulation resistance:1000MΩ at DC500V
♦Breakdown voltage:1.5KV/1 minute
♦Current rating:5A per contact
♦Voltage rating:250V
♦Accepted Max.Cable OD:10mm
♦Molding with cable
♦CCC,CE,RoHS,TUV,UL
♦High quality with 12 months waranty
♦Pin range:2,3,4,5,6,7,8,9,10,12 are aveilable
♦Customer's drawings and designs are welcome,as we have our own
professional R&D team to provide you various solutions.
Certifications
Package&Shipping:
Packing :1.plastic bag 2.Carton 3.Wooden Box 4. As customer
requirement.
Shipping :There are all kinds of methods of shippment for you to
choose,Conpetitive express freight such as DHL/FedEx/UPS.For thoes
of mass orders a quote of ocean shipping would be provided too if
required.
FAQ
1. What is the packing ?
A: Well , we pack it in neutral brown cartons. Also your packing
requirement is considered.
2.What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages before you pay the balance.
3.How about your delivery time?
A: Generally, it will take 5 to 10 working days after receiving
your advance payment. The specific delivery time depends on the
items and the quantity of your order.
4.Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
5.Can you off er samples ?
A: We can supply the sample if we have ready parts in stock, but
you need to bear the courier cost.
6.Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the
project.And I am sure you will be confident in us after you visit
our factory.
7.How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
